  11. NSF-Listed Plate Caster, 300 lb. Load Rating, Swivel
Zoro Select NSF-Listed Plate Caster, 300 lb. Load Rating, Swivel 400K70 - main

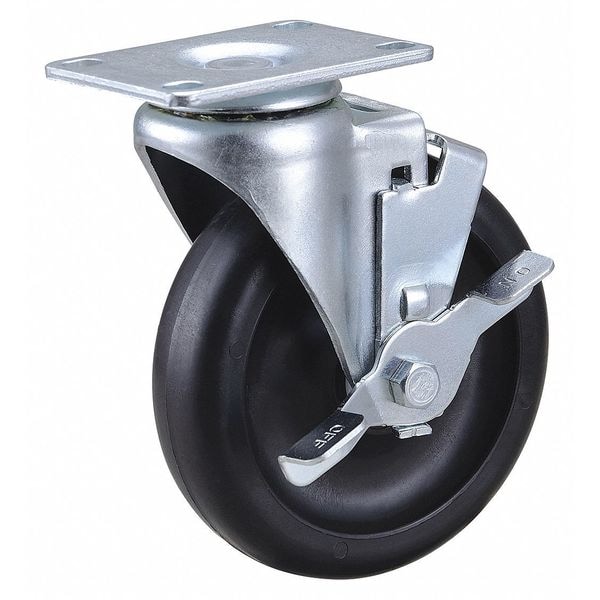

NSF-Listed Plate Caster, 300 lb. Load Rating, Swivel

  • Mfr # 400K70

  • Zoro # G5605317

product price: $11.55
/ea

Key Features

Caster Sub-Type
Swivel
Wheel/Tread Material
Polyolefin
Caster Brake Type
Side Brake
Wheel Dia.
5 in
Wheel Width
1 1/4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
400K70
Zoro #
G5605317
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
5 in
Wheel Width
1 1/4 in
Mounting Height
6 1/8 in
Mounting Plate Size
2 1/2 in x 3 5/8 in
Mounting Plate Thickness
5/32in
Mounting Bolt Dia.
5/16 in
Swivel Radius
3 7/8 in
Overall Height
6-5/32in

Details

Item
Plate Caster
Caster Sub-Type
Swivel
Wheel/Tread Material
Polyolefin
Caster Brake Type
Side Brake
Load Rating
300 lb
Wheel Bearing Type
Delrin
Wheel/Tread Color
Black
Wheel Hardness Rating
65 Shore D
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Black
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Caster Plate Hole Pattern
C
Thread Guards
No
Caster Temp. Range Available
Yes
Application
General Purpose
Caster Brake Included
Yes
Wheel Color
Black
Extended Lead
No
Frame Finish
Zinc Plated
Replacement Wheel
5UX85
Standards
NSF Listed
Includes Thread Guards
No
Swivel Lock Type
No Lock Included
Wheel Core Material
Polyolefin
Load Rating Range
300 to 999 lb
Swivel Raceway Type
Double Ball
Swivel Construction
Kingpin
Wheel/Tread Hardness Rating
Hard
Load Capacity - Maximum
300 lb
Operating Temperature - Maximum
180 Degrees F
Operating Temperature Range
-20 Degrees to 180 Degrees F
Operating Temperature - Minimum
-20 Degrees F

Description

Swivel, Plate Caster, Load Rating 300 lb, Swivel Lock Type No Lock Included, Wheel Dia. 5 in, Wheel Width 1 1/4 in, Wheel/Tread Material Polyolefin, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Side Brake, Tread Shape Standard
