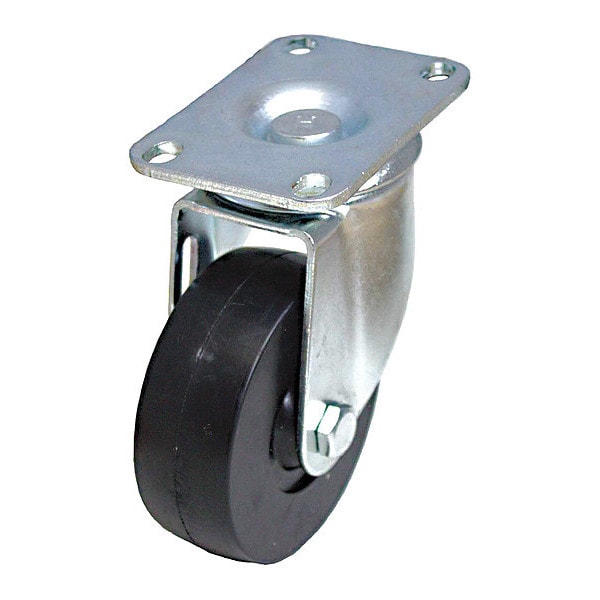

NSF-Listed Plate Caster, 325 lb. Ld Rating, Bk Wheel

  • Mfr # P12S-R060D-P2

  • Zoro # G9660709

product price:
$
33.79
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Rubber
Wheel Width
1 1/4 in
Mounting Height
7 1/4 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P12S-R060D-P2
Zoro #
G9660709
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
6 in
Wheel Width
1 1/4 in
Mounting Height
7 1/4 in
Mounting Plate Size
3-1/8 in x 4-1/8 in
Mounting Plate Thickness
5/32 in
Mounting Bolt Dia.
5/16 in
Overall Height
7-1/4"
Swivel Radius
4 3/8 in
Mounting Plate Length
3 1/8 in
Inside Slot Spacing - Length
3.375 in
Outside Slot Spacing - Length
3.5 in
Outside Slot Spacing - Width
2.375 in
Inside Slot Spacing - Width
2.375 in
Overall Wheel Width
1 1/4 in
For Axle Dia.
3/8 in

Details

Item
Plate Caster
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Rubber
Load Rating
325 lb
Wheel Bearing Type
Delrin
Wheel Hardness Rating
80 Shore A
Number of Mounting Holes
4
Caster Frame Material
Steel
Core Color
Black
Non-Marking
No
Number of Wheels
1
Inside Bolt Hole Spacing
2-3/8 in x 3-3/8 in
Caster Plate Hole Pattern
C
Wheel Color
Black
Includes
Complete Caster
Application
Food Service Racks and Cases, Hospital Equipment, Hotel Equipment, Institutional Equipment, Laundry Trucks, Office Equipment, Stock Carts, Store Fixtures, Utility Carts
Caster Brake Type
No Brake
Frame Finish
Zinc Plated
Replacement Wheel
Mfr. No. P-R-060x013/038D
Thread Guards
No
Caster Temp. Range Available
Yes
Features
Noise Reduction
Standards
ANSI ICWM, NSF Listed
Extended Lead
No
Outside Bolt Hole Spacing
2-3/8 in x 3-1/2 in
Caster Brake Included
No
Includes Thread Guards
No
Swivel Raceway Type
Double Ball
Tread Shape
Standard
Operating Temperature Range
-15 Degrees to 160 Degrees F
Swivel Construction
Kingpin
Wheel Core Material
Rubber
Load Rating Range
Light-Medium Duty
Wheel/Tread Hardness Rating
Soft
Swivel Lock Type
No Lock Included
Wheel/Tread Color
Black
Tread Color
Black
ESD Conductive
No
Resistant To
Chemical Resistance To Many Aggressive Substances, Except Oils
Series
P12 Series
Tread
Standard
Load Capacity
250 lb
Caster Mounting Type
Plate
Load Capacity - Maximum
350 lb
Caster Features
Corrosion-Resistant
Wheel Bearing Material
Delrin
Wheel Core Type
Solid
Mounting Plate Shape
Rectangle
Mounting Hole Type
Slot
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel

Description

Swivel, Plate Caster, Load Rating 325 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 1 1/4 in, Wheel/Tread Material Rubber, Wheel Core Material Rubber, Non-Marking No, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
