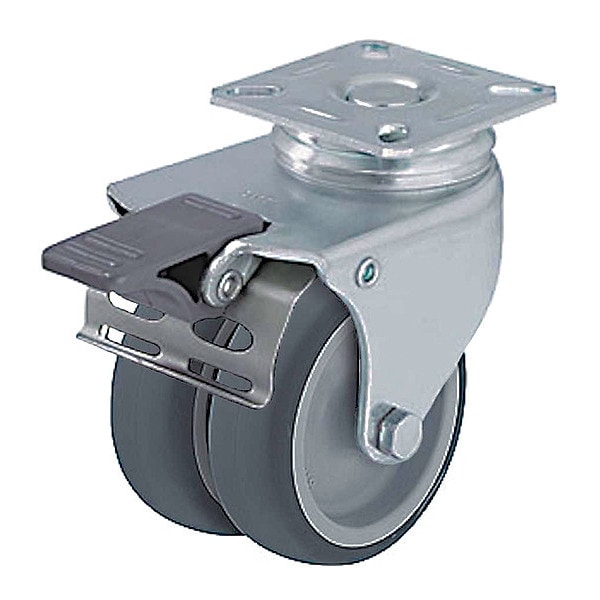

Plate Caster, 220 lb. Load Rating

  • Mfr # LDA-TPA 75G-FI
  • Zoro # G8518157
product price:
$
28.15
/ea

Key Features

Outside Bolt Hole Spacing
1-13/16 in x 1-13/16 in
Features
Floor Protection, Reduced Swivel Forces
Replacement Wheel
Mfr. No. TPA 75/8G
Wheel Dia.
3 in
Non-Marking
Yes
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LDA-TPA 75G-FI
Zoro #
G8518157
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
3 in
Mounting Bolt Dia.
7/32 in
Wheel Width
1 in
Overall Height
3-63/64"
Swivel Radius
None- Rigid Caster
Mounting Height
4 in
Mounting Plate Size
2-3/8in x 2-3/8in
Mounting Plate Length
60 mm
Inside Slot Spacing - Length
38 mm
Inside Slot Spacing - Width
38 mm
Mounting Plate Thickness
3/32 in
For Axle Dia.
6 mm
Bolt Hole Spacing - Length
1.563 in
Overall Wheel Width
1 in
Mounting Plate Width
60 mm
Outside Slot Spacing - Length
48 mm
Outside Slot Spacing - Width
48 mm

Details

Outside Bolt Hole Spacing
1-13/16 in x 1-13/16 in
Features
Floor Protection, Reduced Swivel Forces
Replacement Wheel
Mfr. No. TPA 75/8G
Non-Marking
Yes
Caster Brake Included
Yes
Thread Guards
No
Extended Lead
No
Item
Plate Caster
Caster Frame Material
Steel
Caster Plate Hole Pattern
A
Number of Wheels
2
Caster Temp. Range Available
Yes
Inside Bolt Hole Spacing
1-9/16 in x 1-9/16 in
Application
Cases, Food Service Racks, Hospital Equipment, Hotel Equipment, Institutional Equipment, Laundry Trucks, Office Equipment, Stock Carts, Store Fixtures, Utility Carts
Load Rating
220 lb
Caster Sub-Type
Swivel
Includes
Total Lock Brake
Wheel Color
Gray
Core Color
Gray
Frame Finish
Zinc Plated
Standards
DIN EN 12530
Caster Brake Type
Total Lock
Tread Shape
Standard
Load Rating Range
Light-Duty
Includes Thread Guards
No
Wheel Bearing Type
Plain
Swivel Raceway Type
Double Ball
Swivel Construction
Kingpin
Wheel/Tread Hardness Rating
Soft
Wheel Core Material
Polyolefin
Swivel Lock Type
Total Lock
Number of Mounting Holes
4
Wheel/Tread Material
Rubber
Wheel/Tread Color
Gray
System of Measurement
Inch
Tread Color
Gray
Series
LDA Series
ESD Conductive
No
Resistant To
Very High Chemical Resistance To Many Aggressive Substances
Tread
Standard
Caster Mounting Type
Plate
Load Capacity
100 kg
Load Capacity - Maximum
220 lb
Compatible With
TPA 75/8G
Wheel Hardness Rating
85 Shore A
Wheel Core Type
Solid
Mounting Hole Type
Hole
Mounting Plate Shape
Rectangle
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Brake Location
Rear
Operating Temperature - Maximum
140 Degrees F
Operating Temperature Range
-20 Degrees To 60 Degrees C
Operating Temperature - Minimum
-10 Degrees F

Description

Swivel, Plate Caster, Load Rating 220 lb, Swivel Lock Type Total Lock, Wheel Dia. 3 in, Wheel Width 1 in, Wheel/Tread Material Rubber, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 2, Caster Brake Type Total Lock, Tread Shape Standard
