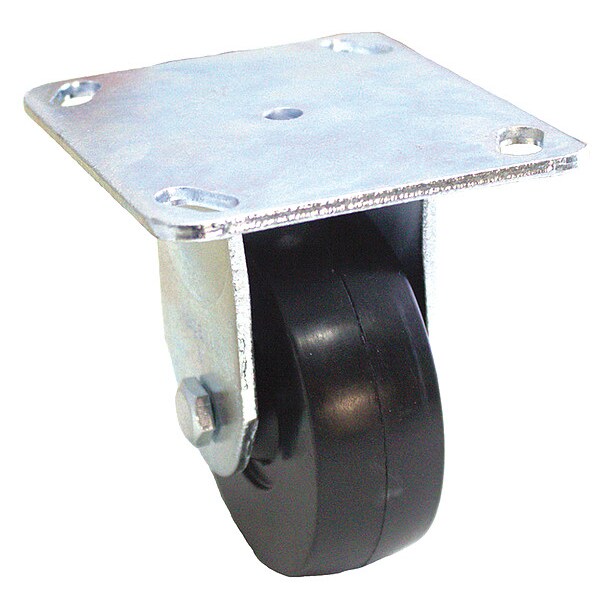

NSF-Listed Plate Caster, 325 lb. Load Rating, Rigid

  • Mfr # P12R-R060B-P3
  • Zoro # G1199333
product price:
$
28.59
/ea

Key Features

Caster Frame Material
Steel
Frame Finish
Zinc Plated
Number of Wheels
1
Features
Noise Reduction
Caster Plate Hole Pattern
B
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
P12R-R060B-P3
Zoro #
G1199333
UPC #
-
Country of Origin
China
Caster Frame Material
Steel
Frame Finish
Zinc Plated
Number of Wheels
1
Features
Noise Reduction
Caster Plate Hole Pattern
B
Standards
ANSI ICWM, NSF Listed
Extended Lead
No
Application
Food Service Racks and Cases, Hotel Equipment, Institutional Equipment, Laundry Trucks, Stock Carts
Item
Plate Caster
Caster Brake Included
No
Core Color
Black
Load Rating
325 lb
Caster Sub-Type
Rigid
Inside Bolt Hole Spacing
3 in x 3 in
Wheel Color
Black
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Caster Temp. Range Available
Yes
Thread Guards
No
Non-Marking
No
Replacement Wheel
Mfr. No. P-R-0560x013/038B
Caster Brake Type
No Brake
Load Rating Range
Light-Medium Duty
Includes Thread Guards
No
Number of Mounting Holes
4
Swivel Lock Type
No Lock Included
Operating Temperature Range
-20 Degrees To 125 Degrees F
Tread Shape
Standard
Wheel/Tread Hardness Rating
Soft
Wheel Bearing Type
Ball
Wheel Core Material
Rubber
Wheel/Tread Material
Rubber
Wheel/Tread Color
Black
System of Measurement
Inch
Caster Mounting Type
Plate
Tread
Standard
ESD Conductive
No
Load Capacity
250 lb
Resistant To
Chemical Resistance To Many Aggressive Substances, Except Oils
Series
P12 Series
Tread Color
Black
Wheel Hardness Rating
80 Shore A
Load Capacity - Maximum
350 lb
Caster Features
Corrosion-Resistant
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel
Mounting Plate Shape
Rectangle
Wheel Core Type
Solid
Wheel Bearing Material
Steel
Mounting Hole Type
Slot
Operating Temperature - Minimum
-15 Degrees F
Operating Temperature - Maximum
160 Degrees F

Dimensions

Wheel Width
1 1/4 in
Swivel Radius
None- Rigid Caster
Mounting Bolt Dia.
5/16 in
Overall Height
7-1/4"
Wheel Dia.
6 in
Mounting Height
6 3/16 in
Mounting Plate Size
3-3/4in x 4-3/8in
Outside Slot Spacing - Length
3.625 in
Outside Slot Spacing - Width
3 in
For Axle Dia.
3/8 in
Inside Slot Spacing - Length
3 in
Inside Slot Spacing - Width
2.625 in
Mounting Plate Thickness
5/32 in
Mounting Plate Length
3 3/4 in
Overall Wheel Width
1 1/4 in
Fits Chest Size
Noise Reduction

Description

Rigid, Plate Caster, Load Rating 325 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 1 1/4 in, Wheel/Tread Material Rubber, Wheel Core Material Rubber, Non-Marking No, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
