  6. Plate Caster, 800 lb. Ld Rating, Roller

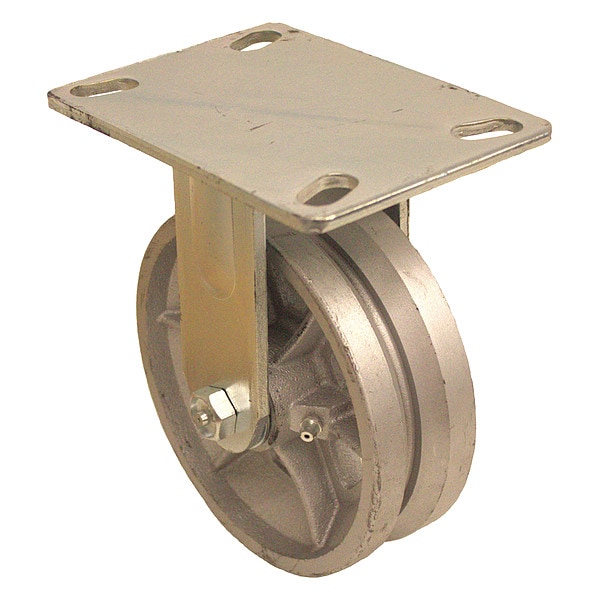

Zoro Select Plate Caster, 800 lb. Ld Rating, Roller P21R-C050R-16-VG1 - main

Plate Caster, 800 lb. Ld Rating, Roller

  • Mfr # P21R-C050R-16-VG1

  • Zoro # G3317379

product price:  $57.39
/ea

Key Features

Core Color
Gray
Application
Dollies, Floor Trucks, Material Handling Containers, Platform Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
Standards
ANSI ICWM, NSF Listed
Overall Height
6-1/2in
Wheel Width
2 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
P21R-C050R-16-VG1
Zoro #
G3317379
UPC #
-
Country of Origin
China

Dimensions

Overall Height
6-1/2in
Wheel Width
2 in
Mounting Bolt Dia.
1/2 in
Swivel Radius
None- Rigid Caster
Wheel Dia.
5 in
Mounting Height
6 1/2 in
Mounting Plate Size
4-1/2in x 6-1/4in
Outside Slot Spacing - Length
5.25 in
For Axle Dia.
1/2 in
Inside Slot Spacing - Width
2.438 in
Mounting Plate Thickness
1/4in
Inside Slot Spacing - Length
4.938 in
Mounting Plate Length
4 1/2 in
Overall Wheel Width
2 in

Details

Core Color
Gray
Application
Dollies, Floor Trucks, Material Handling Containers, Platform Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
Standards
ANSI ICWM, NSF Listed
Caster Temp. Range Available
Yes
Caster Brake Included
No
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Item
Rigid Caster
Number of Wheels
1
Load Rating
800 lb
Features
Angle Iron Track Compatible
Extended Lead
No
Non-Marking
No
Replacement Wheel
Mfr. No. P-C-050x020/050R-VG1
Frame Finish
Zinc Plated
Wheel Color
Silver
Thread Guards
No
Caster Sub-Type
Rigid
Caster Plate Hole Pattern
A
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Caster Frame Material
Steel
Caster Brake Type
No Brake
Tread Shape
Standard
Wheel Bearing Type
Roller
Swivel Lock Type
No Lock Included
Includes Thread Guards
No
Wheel/Tread Material
Cast Iron
Wheel Core Material
Cast Iron
Wheel/Tread Hardness Rating
Extra Hard
Load Rating Range
Light-Medium Duty
Number of Mounting Holes
4
System of Measurement
Inch
Tread
Standard
Resistant To
High Chemical Resistance To Many Aggressive Substances
Caster Mounting Type
Plate
Series
P21 Series
Tread Color
Silver
Load Capacity
1000 Lb.
ESD Conductive
No
Load Capacity - Maximum
1,000 lb
Compatible With
P-C-050X020/050R-VG1
Caster Features
Corrosion-Resistant
Wheel Hardness Rating
180-220 BHN
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle
Wheel Core Type
Solid
For Surface Type
Grease, Metal Scrap, Oil, Rubber, Steel, Wood
Wheel Bearing Material
Steel
Operating Temperature - Minimum
-20 Degrees F
Operating Temperature Range
Up To 800 Degrees F
Operating Temperature - Maximum
250 Degrees F

Description

Rigid, Plate Caster, Load Rating 800 lb, Swivel Lock Type No Lock Included, Wheel Dia. 5 in, Wheel Width 2 in, Wheel/Tread Material Iron, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape V-Groove
