  11. NSF-Listed Plate Caster, 325 lb. Load Rating, Swivel

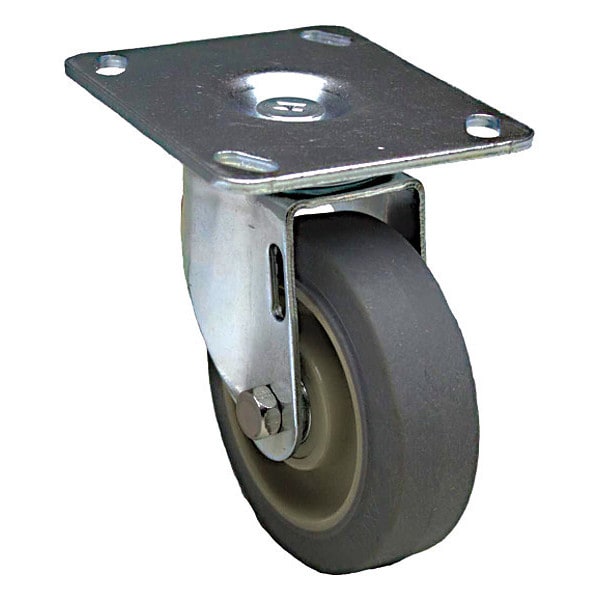

Zoro Select NSF-Listed Plate Caster, 325 lb. Load Rating, Swivel P12S-PRP060K-P3 - main

NSF-Listed Plate Caster, 325 lb. Load Rating, Swivel

  • Mfr # P12S-PRP060K-P3

  • Zoro # G3317083

product price: $21.79
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Thermoplastic Rubber
Caster Brake Type
No Brake
Wheel Dia.
6 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P12S-PRP060K-P3
Zoro #
G3317083
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
6 in
Wheel Width
1 1/4 in
Mounting Height
7 1/4 in
Mounting Plate Size
3-3/4in x 4-3/8in
Mounting Plate Thickness
1/8in
Mounting Bolt Dia.
5/16 in
Overall Height
7-1/4in
Swivel Radius
4-1/2 in
Outside Slot Spacing - Length
3.625 in
For Axle Dia.
3/8 in
Mounting Plate Width
3 3/4 in
Overall Wheel Width
1 1/4 in
Inside Slot Spacing - Length
3 in
Outside Slot Spacing - Width
3 in
Mounting Plate Length
4 3/8 in
Bolt Hole Spacing - Length
2.625 in
Inside Slot Spacing - Width
2.625 in

Details

Item
Swivel Caster
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Thermoplastic Rubber
Caster Brake Type
No Brake
Load Rating
325 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Ball
Wheel/Tread Color
Gray
Wheel Hardness Rating
90 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Inside Bolt Hole Spacing
3 in x 3 in
Caster Plate Hole Pattern
B
Thread Guards
No
Standards
RoHS, ICWM, NSF
Frame Finish
Zinc Plated
Extended Lead
No
Caster Brake Included
No
Wheel Color
Gray
Features
Floor Protective, Noise Reduction
Caster Temp. Range Available
Yes
Application
Retail, Industrial, Commercial
Replacement Wheel
Mfr. No. P-PRP-060x013/038K
Includes
Thread Guards
Swivel Construction
Kingpin
Includes Thread Guards
Yes
Operating Temperature Range
-4 Degrees To 140 Degrees F
Swivel Lock Type
No Lock Included
Swivel Raceway Type
Double Ball
Wheel/Tread Hardness Rating
Firm
Load Rating Range
Light-Medium Duty
Wheel Core Material
Polypropylene
Series
P12 Series
Tread
Standard
Load Capacity
325 lb
Tread Color
Gray
ESD Conductive
No
Resistant To
High Chemical Resistance To Many Aggressive Substances
Load Capacity - Maximum
325 lb
Caster Features
Debris-Resistant
Mounting Hole Type
Slot
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Wheel Bearing Material
Steel
Mounting Plate Shape
Rectangle
Wheel Core Type
Solid
Operating Temperature - Minimum
-15 Degrees F
Operating Temperature - Maximum
160 Degrees F

Description

Swivel, Plate Caster, Load Rating 325 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 1 1/4 in, Wheel/Tread Material Rubber, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
