  11. Plate Caster, Swivel, Rubber, 7 1/2"H

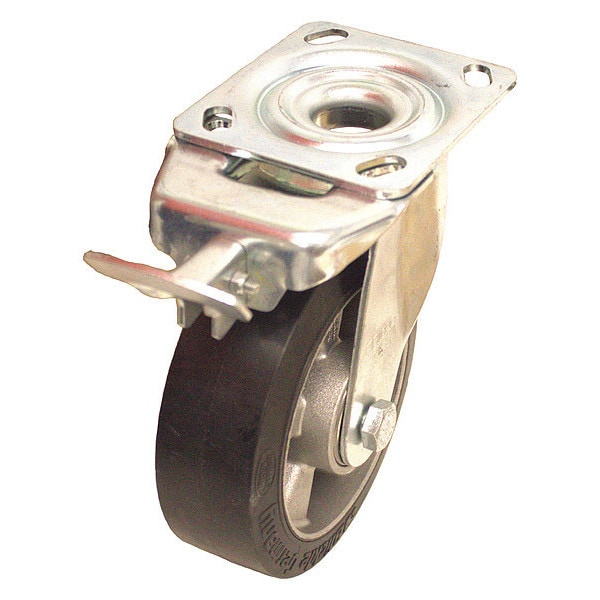

Zoro Select Plate Caster, Swivel, Rubber, 7 1/2"H US_LE-ALEV 150K-14-RI-04.14 - main

Plate Caster, Swivel, Rubber, 7 1/2"H

  • Mfr # US_LE-ALEV 150K-14-RI-04.14

  • Zoro # G3573733

product price: $86.95
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Rubber
Caster Brake Type
No Brake
Wheel Dia.
5 7/8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
US_LE-ALEV 150K-14-RI-04.14
Zoro #
G3573733
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
5 7/8 in
Wheel Width
2 in
Mounting Height
7 1/2 in
Mounting Plate Size
4in x 4-1/2in
Mounting Plate Thickness
1/8in
Mounting Bolt Dia.
3/8 in
Swivel Radius
5-1/8 in
Overall Height
7-1/2in
Inside Slot Spacing - Width
2.625 in
Overall Wheel Width
2 in
Mounting Plate Length
4 in
Inside Slot Spacing - Length
3 in
Outside Slot Spacing - Length
3.625 in
For Axle Dia.
12 mm
Outside Slot Spacing - Width
3 in

Details

Item
Swivel Caster with Four Position Swivel Lock
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Rubber
Caster Brake Type
No Brake
Load Rating
880 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Ball
Wheel/Tread Color
Black
Wheel Hardness Rating
65 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Silver
Non-Marking
No
Number of Wheels
1
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Inside Bolt Hole Spacing
3 in x 3 in
Caster Plate Hole Pattern
B
Swivel Raceway Type
Double Ball
Wheel/Tread Hardness Rating
Soft
Tread
Standard
Features
Noise Reduction
Replacement Wheel
Mfr. No. ALEV 150/20K
Extended Lead
No
Swivel Construction
Kingpin
Frame Finish
Zinc Plated
Includes Thread Guards
No
Wheel Color
Black
Application
Retail, Industrial, Commercial
Thread Guards
No
Wheel Core Material
Aluminum
Swivel Lock Type
Directional Lock
Caster Temp. Range Available
Yes
Standards
RoHS, ICWM
Load Rating Range
Light-Medium Duty
Includes
4-Position Directional Lock
Caster Brake Included
No
Tread Color
Black
ESD Conductive
No
Resistant To
High Chemical Resistance To Many Aggressive Substances, Except Oils
Series
LE Series
Load Capacity
660 lb
Compatible With
ALEV 150/20K
Load Capacity - Maximum
880 lb
Wheel Core Type
Solid
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel
Mounting Hole Type
Slot
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Wheel Bearing Material
Steel
Mounting Plate Shape
Rectangle
Operating Temperature - Maximum
175 Degrees F
Operating Temperature - Minimum
-15 Degrees F
Operating Temperature Range
-15 Degrees To 175 Degrees F

Description

Swivel, Plate Caster, Load Rating 880 lb, Swivel Lock Type Directional Lock, Wheel Dia. 5 7/8 in, Wheel Width 2 in, Wheel/Tread Material Rubber, Wheel Core Material Aluminum, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
