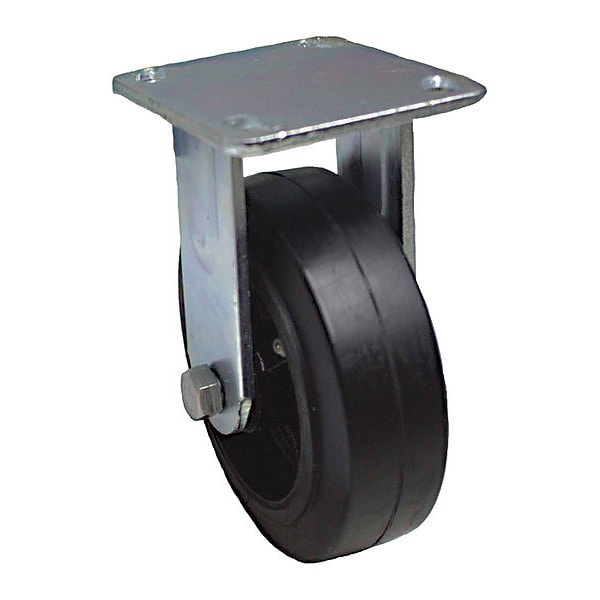

Zoro Select NSF-Listed Plate Caster, 550 lb. Ld Rating, Roller P21R-RY060R-14 - main

NSF-Listed Plate Caster, 550 lb. Ld Rating, Roller

  • Mfr # P21R-RY060R-14

  • Zoro # G7278332

product price:  $27.35
/ea

Key Features

Caster Plate Hole Pattern
B
Extended Lead
No
Thread Guards
No
Number of Wheels
1
Mounting Bolt Dia.
3/8 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
P21R-RY060R-14
Zoro #
G7278332
UPC #
-
Country of Origin
China

Dimensions

Mounting Bolt Dia.
3/8 in
Swivel Radius
None- Rigid Caster
Wheel Dia.
6 in
Wheel Width
2 in
Overall Height
7-1/2in
Mounting Height
7 1/2 in
Mounting Plate Size
4in x 4-1/2in
Inside Slot Spacing - Length
3 in
For Axle Dia.
1/2 in
Inside Slot Spacing - Width
2.625 in
Mounting Plate Width
4 in
Outside Slot Spacing - Length
3.625 in
Mounting Plate Length
4 1/2 in
Bolt Hole Spacing - Length
2.625 in
Outside Slot Spacing - Width
3 in
Mounting Plate Thickness
1/4in
Overall Wheel Width
2 in

Details

Caster Plate Hole Pattern
B
Extended Lead
No
Thread Guards
No
Number of Wheels
1
Features
Noise Reduction
Replacement Wheel
Mfr. No. P-RY-060x020/050R
Caster Sub-Type
Rigid
Wheel Color
Black
Inside Bolt Hole Spacing
3 in x 3 in
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Application
Dollies, Floor Trucks, Material Handling Containers, Platform Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
Item
Rigid Caster
Load Rating
550 lb
Caster Frame Material
Steel
Non-Marking
No
Frame Finish
Zinc Plated
Core Color
Gray
Standards
ANSI ICWM, NSF Listed
Caster Temp. Range Available
Yes
Caster Brake Included
No
Caster Brake Type
No Brake
Load Rating Range
Light-Medium Duty
Swivel Lock Type
No Lock Included
Wheel Core Material
Cast Iron
Number of Mounting Holes
4
Wheel/Tread Hardness Rating
Soft
Tread Shape
Standard
Wheel Bearing Type
Roller
Includes Thread Guards
No
Wheel/Tread Material
Rubber
Wheel/Tread Color
Black
System of Measurement
Inch
Resistant To
Chemical Resistance To Many Aggressive Substances, Except Oils
Caster Mounting Type
Plate
Tread Color
Black
ESD Conductive
No
Tread
Standard
Series
P21 Series
Load Capacity
550 lb
Compatible With
P-RY-060X020/050R
Load Capacity - Maximum
550 lb
Wheel Hardness Rating
65 Shore A
Wheel Bearing Material
Steel
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel
Caster Features
Corrosion-Resistant
Mounting Hole Type
Slot
Wheel Core Type
Spoke
Mounting Plate Shape
Rectangle
Operating Temperature - Maximum
180 Degrees F
Operating Temperature Range
-40 Degrees To 180 Degrees F
Operating Temperature - Minimum
-20 Degrees F

Description

Rigid, Plate Caster, Load Rating 550 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 2 in, Wheel/Tread Material Rubber, Wheel Core Material Iron, Non-Marking No, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
