  6. PlateCaster, Swivl, Polyurethane, 7 11/16"H
Zoro Select PlateCaster, Swivl, Polyurethane, 7 11/16"H L-PATH 160KA - main

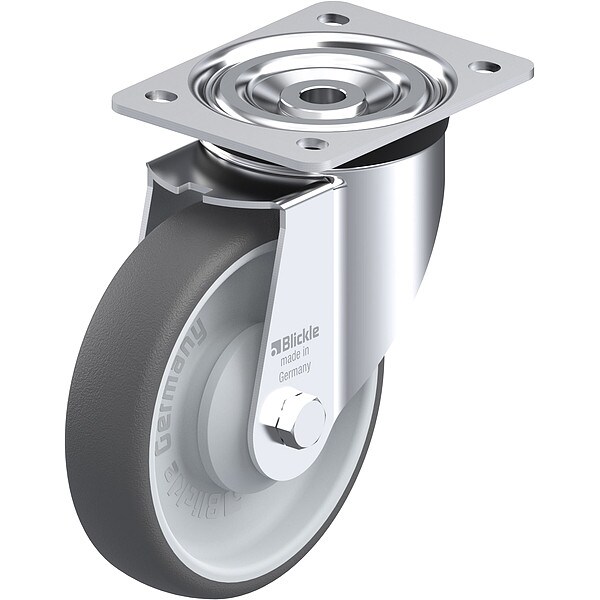

PlateCaster, Swivl, Polyurethane, 7 11/16"H

  • Mfr # L-PATH 160KA

  • Zoro # G814810892

product price:  $120.99
/ea
Free Shipping & Returns

Key Features

System of Measurement
Inch
Caster Mounting Type
Plate
Mounting Bolt Dia.
3/8 in
Frame Finish
Zinc Plated
Core Color
Silver
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
L-PATH 160KA
Zoro #
G814810892
UPC #
-
Country of Origin
Germany

Dimensions

Mounting Bolt Dia.
3/8 in
Wheel Width
1 9/16 in
Wheel Dia.
6 5/16 in
Mounting Height
7 11/16 in
Overall Wheel Width
1 9/16 in
Inside Slot Spacing - Length
4.125 in
Mounting Plate Length
4 5/16 in
Outside Slot Spacing - Length
4.125 in
Outside Slot Spacing - Width
3.156 in
Mounting Plate Thickness
5/32 in
Hub Length
60 mm
Mounting Plate Width
110 mm
For Axle Dia.
12 mm
Inside Slot Spacing - Width
2.969 in

Details

System of Measurement
Inch
Caster Mounting Type
Plate
Frame Finish
Zinc Plated
Core Color
Silver
Wheel/Tread Color
Gray
Swivel Construction
Kingpin
Series
PATH
Caster Frame Material
Steel
Caster Brake Type
No Brake
Features
Minimum Swivel Head Play and Smooth Rolling Characteristic and Increased Service Life Due to the Special Dynamic Blickle Riveting Process, Non-Staining
Number of Wheels
1
Non-Marking
Yes
Number of Mounting Holes
4
Item
Plate Caster
Caster Sub-Type
Swivel
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Wheel Bearing Type
Ball
Frame Construction
Pressed
Wheel Core Material
Nylon
Operating Temperature - Minimum
-20 Degrees C
Includes Thread Guards
Yes
Tread Shape
Standard
Wheel Core Type
Solid
Mounting Plate Shape
Rectangle
Wheel Bearing Material
Steel
Swivel Raceway Type
Double Ball
Load Capacity - Maximum
880 lb
Wheel/Tread Material
Polyurethane
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Swivel Bearing Seal Type
Sealed
Wheel Hardness Rating
94 Shore A
NSF Listed
No
Mounting Hole Type
Slot
Operating Temperature - Maximum
70 Degrees C

Description

Swivel, Plate Caster, Wheel Dia. 6 5/16 in, Wheel Width 1 9/16 in, Wheel/Tread Material Polyurethane, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
