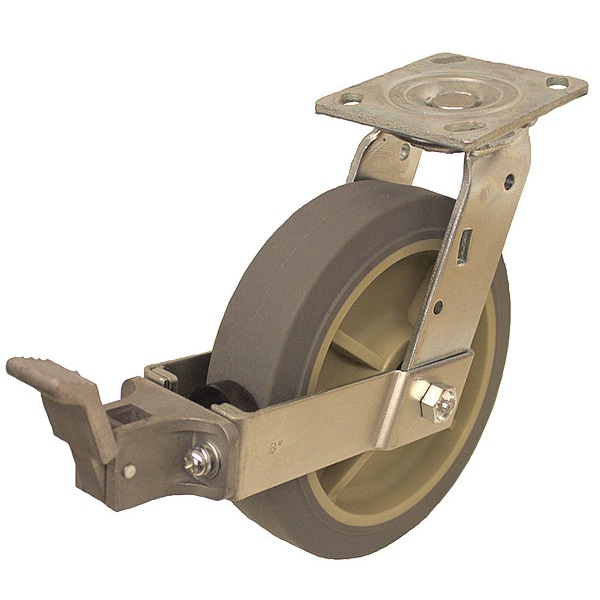

NSF-Listed Plate Caster, 600 lb. Ld Rating, Roller

  • Mfr # P21S-PRP080R-14-WK
  • Zoro # G7277903
product price:
$
64.49
/ea

Key Features

Overall Height
9-1/2"
Swivel Lock Type
Swivel Lock
Mounting Height
9 1/2 in
Wheel/Tread Hardness Rating
Firm
Wheel Bearing Type
Roller
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P21S-PRP080R-14-WK
Zoro #
G7277903
UPC #
-
Country of Origin
China

Dimensions

Overall Height
9-1/2"
Mounting Height
9 1/2 in
Mounting Plate Size
4in x 4-1/2in
Wheel Dia.
8 in
Mounting Bolt Dia.
3/8 in
Swivel Radius
8 1/2 in
Wheel Width
2 in
Inside Slot Spacing - Length
3 in
Mounting Plate Width
4 in
Bolt Hole Spacing - Length
2.625 in
Mounting Plate Length
4 1/2 in
Outside Slot Spacing - Width
3 in
Overall Wheel Width
2 in
Mounting Plate Thickness
7/32 in
For Axle Dia.
1/2 in
Outside Slot Spacing - Length
3.625 in
Inside Slot Spacing - Width
2.625 in
Fits Chest Size
Floor Protective, Noise Reduction

Details

Swivel Lock Type
Swivel Lock
Wheel/Tread Hardness Rating
Firm
Wheel Bearing Type
Roller
Wheel Core Material
Polyolefin
Load Rating Range
Light-Medium Duty
Number of Mounting Holes
4
Includes Thread Guards
No
Tread Shape
Standard
Swivel Construction
Kingpin
Swivel Raceway Type
Double Ball
Wheel/Tread Material
Rubber
Wheel/Tread Color
Gray
Series
P21 Series
Inside Bolt Hole Spacing
3 in x 3 in
Caster Brake Type
No Brake
Replacement Wheel
Mfr. No. P-RP-080X020/050R
Load Rating
600 lb
Resistant To
High Chemical Resistance To Many Aggressive Substances
System of Measurement
Inch
Thread Guards
No
Caster Plate Hole Pattern
B
Extended Lead
No
Non-Marking
Yes
Features
Floor Protective, Noise Reduction
Caster Mounting Type
Plate
Caster Frame Material
Steel
Caster Sub-Type
Swivel
Core Color
Beige
Wheel Color
Gray
Load Capacity
600 lb
Item
Plate Caster
Accessories
Optional: P-DL21-14 (Directional Lock)
Caster Temp. Range Available
Yes
Caster Brake Included
Yes
Standards
ANSI ICWM, NSF Listed
Application
Dollies, Floor Trucks, Material Handling Containers, Platform Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
Tread Color
Gray
Includes
Trailing End Brake
Number of Wheels
1
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
ESD Conductive
No
Tread
Standard
Frame Finish
Zinc Plated
Wheel Hardness Rating
65 Shore A
Compatible With
P-RP-080X020/050R
Load Capacity - Maximum
600 lb
Wheel Bearing Material
Steel
Caster Features
Debris-Resistant
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle
Brake Location
Rear
Wheel Core Type
Solid
Operating Temperature - Minimum
-20 Degrees F
Operating Temperature Range
-4 Degrees To 140 Degrees F
Operating Temperature - Maximum
180 Degrees F

Description

Swivel, Plate Caster, Load Rating 600 lb, Swivel Lock Type Swivel Lock, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Rubber, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
