  11. Swivel Plate Caster, 5 in Dia, 315 lb, Gray
Shop All Plate Casters
Zoro Select

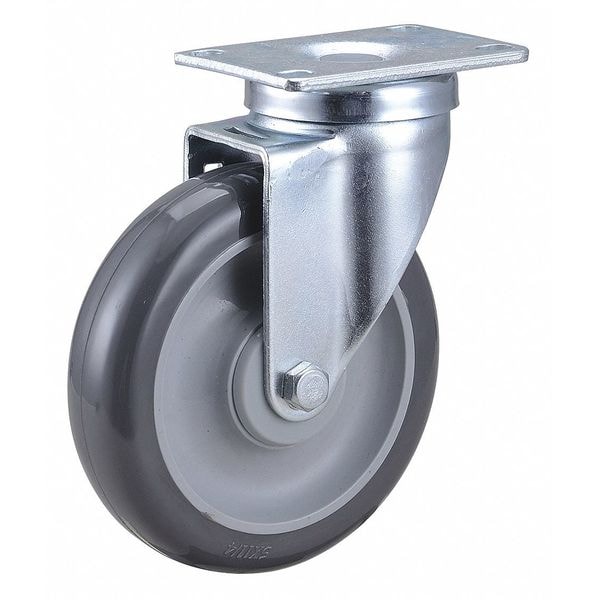

Swivel Plate Caster, 5 in Dia, 315 lb, Gray

product price: $13.59
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Caster Brake Included No
  • Caster Load Rating Range Light-Medium Duty
  • Caster Sub-Type Swivel
  • Caster Wheel Shape Standard
  • Caster Wheel/Tread Material Polyurethane
See all product information

Product Information

Dimensions

Overall Height 6-13/64"
Wheel Dia. 5 in
Wheel Width 1 1/4 in
Stem Dia. No Stem
Plate Size 2-1/2" x 3-5/8"
Caster Plate Size 2-1/2" x 3-5/8"
Mounting Bolt Dia. 5/16 in
Mounting Height 6 3/16 in
Mounting Plate Size 2 1/2 in x 3 5/8 in

Details

Caster Brake Included No
Caster Load Rating Range Light-Medium Duty
Caster Sub-Type Swivel
Caster Wheel Shape Standard
Caster Wheel/Tread Material Polyurethane
Load Rating 315 lb
Number of Wheels 1
Caster Stem Type No Stem/Plate Included
Caster Plate Hole Pattern C
Caster Max. Temp. 175 Degrees F
Caster Raceway Double Ball
Caster Temp. Range Available Yes
Frame Finish Zinc Plated
Core Color Gray
Caster Plate Thickness 5/32"
Caster Product Group Swivel Caster
Caster Swivel Lock Type No Lock Included
Caster Core Material Polyolefin
Application Food Service, Hospital Equipment, Institutional Equipment, Office Equipment, Store Fixtures, Utility Carts
Inside Bolt Hole Spacing 1-3/4 in x 2-13/16 in
Caster Frame Material Steel
Caster Wheel Bearings Ball
Outside Bolt Hole Spacing 1-3/4 in x 3-1/16 in
Includes Thread guards
Standards ANSI/ICWM
Durometer 95 Shore A
Thread Guards Yes
Caster Min. Temp. -40 Degrees F
Extended Lead No
Plate Caster Bolt Hole Pattern C
Non-Marking Yes
Caster Temp. Range -40 Degrees to 175 Degrees F
Plate Thickness 5/32"
Item Debris-Resistant Standard Plate Caster
Frame Material Steel
Wheel Color Gray
Caster Brake Type No Brake Included
Mounting Plate Bolt Hole Pattern C
Wheel/Tread Hardness Rating Firm
Swivel Raceway Type Double Ball
Swivel Lock Type No Lock Included
Load Rating Range 300 to 999 lb
Includes Thread Guards Yes
Wheel Core Material Plastic
Wheel/Tread Hardness 95 Shore A
Number of Mounting Holes 4
Wheel Bearing Type Precision Ball
Swivel Construction Kingpin
Tread Shape Standard
Wheel/Tread Material Polyurethane
Wheel/Tread Color Gray

Description

Swivel, Debris-Resistant Standard Plate Caster, Load Rating 315 lb, Swivel Lock Type No Lock Included, Wheel Dia. 5 in, Wheel Width 1 1/4 in, Wheel/Tread Material Polyurethane, Wheel Core Material Plastic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake Included, Tread Shape Standard
