  6. NSF-Listed Plate Caster, 600 lb. Ld Rating, Roller

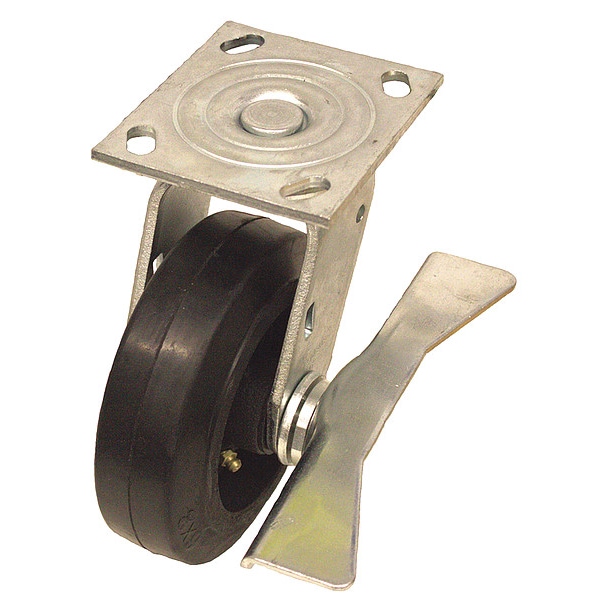

Zoro Select NSF-Listed Plate Caster, 600 lb. Ld Rating, Roller P21S-RY080R-14-CB - main

NSF-Listed Plate Caster, 600 lb. Ld Rating, Roller

  • Mfr # P21S-RY080R-14-CB

  • Zoro # G7278168

product price:  $48.15
/ea

Key Features

Wheel Width
2 in
Wheel Dia.
8 in
Mounting Bolt Dia.
3/8 in
Inside Bolt Hole Spacing
3 in x 3 in
Features
Noise Reduction
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
P21S-RY080R-14-CB
Zoro #
G7278168
UPC #
-
Country of Origin
China

Dimensions

Wheel Width
2 in
Wheel Dia.
8 in
Mounting Bolt Dia.
3/8 in
Swivel Radius
6 3/4 in
Overall Height
9-1/2in
Mounting Plate Size
4in x 4-1/2in
Mounting Height
9 1/2 in
For Axle Dia.
1/2 in
Outside Slot Spacing - Length
3.625 in
Overall Wheel Width
2 in
Inside Slot Spacing - Width
2.625 in
Inside Slot Spacing - Length
3 in
Mounting Plate Length
4 in
Mounting Plate Thickness
1/4in
Outside Slot Spacing - Width
3 in

Details

Inside Bolt Hole Spacing
3 in x 3 in
Features
Noise Reduction
Caster Frame Material
Steel
Application
Dollies, Floor Trucks, Material Handling Containers, Platform Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
Caster Brake Included
Yes
Caster Plate Hole Pattern
B
Frame Finish
Zinc Plated
Standards
ANSI ICWM, NSF Listed
Caster Brake Type
Side Brake
Caster Temp. Range Available
Yes
Thread Guards
No
Number of Wheels
1
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Core Color
Gray
Item
Swivel Caster with Brake
Extended Lead
No
Replacement Wheel
Mfr. No. P-RY-080x020/050R
Non-Marking
No
Wheel Color
Black
Caster Sub-Type
Swivel
Load Rating
600 lb
Includes
Pinch Type Brake
Tread Shape
Standard
Swivel Lock Type
Total Lock
Swivel Construction
Kingpin
Wheel Core Material
Cast Iron
Number of Mounting Holes
4
Wheel/Tread Hardness Rating
Soft
Swivel Raceway Type
Double Ball
Load Rating Range
Light-Medium Duty
Wheel Bearing Type
Roller
Includes Thread Guards
No
Wheel/Tread Material
Rubber
Wheel/Tread Color
Black
System of Measurement
Inch
Tread Color
Black
Caster Mounting Type
Plate
Resistant To
Chemical Resistance To Many Aggressive Substances, Except Oils
Series
P21 Series
Tread
Standard
ESD Conductive
No
Load Capacity
600 lb
Accessories
Optional: P-DL21-14 (Directional Lock)
Wheel Hardness Rating
65 Shore A
Compatible With
P-RY-080X020/050R
Load Capacity - Maximum
600 lb
Mounting Hole Type
Slot
Caster Features
Corrosion-Resistant
Wheel Core Type
Spoke
Mounting Plate Shape
Rectangle
Wheel Bearing Material
Steel
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel
Brake Location
Side
Operating Temperature Range
-40 Degrees To 180 Degrees F
Operating Temperature - Maximum
180 Degrees F
Operating Temperature - Minimum
-20 Degrees F

Description

Swivel, Plate Caster, Load Rating 600 lb, Swivel Lock Type Total Lock, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Rubber, Wheel Core Material Iron, Non-Marking No, Number of Wheels 1, Caster Brake Type Side Brake, Tread Shape Standard
