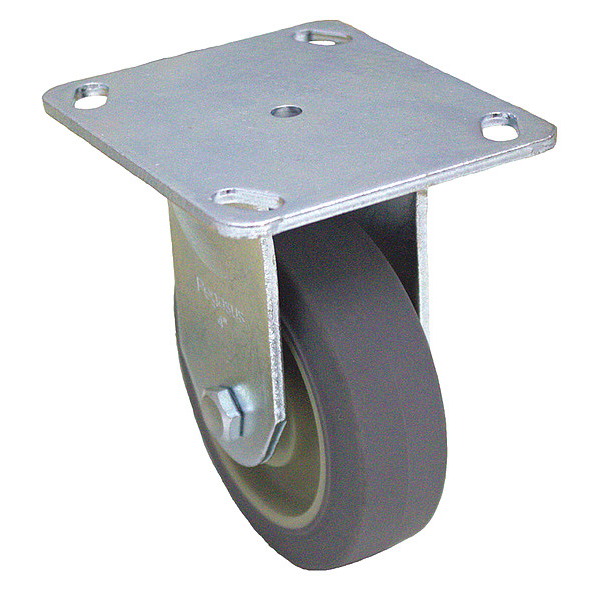

Zoro Select NSF-Listed Plate Caster, 325 lb. Load Rating, Rigid P12R-PRP060K-P3 - main

NSF-Listed Plate Caster, 325 lb. Load Rating, Rigid

  • Mfr # P12R-PRP060K-P3

  • Zoro # G1199379

product price:  $13.79
/ea

Key Features

Frame Finish
Zinc Plated
Wheel Width
1 1/4 in
Caster Temp. Range Available
Yes
Load Rating
325 lb
Caster Frame Material
Steel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P12R-PRP060K-P3
Zoro #
G1199379
UPC #
-
Country of Origin
China

Dimensions

Wheel Width
1 1/4 in
Wheel Dia.
6 in
Swivel Radius
None- Rigid Caster
Overall Height
7-1/4in
Mounting Bolt Dia.
5/16 in
Mounting Height
7 1/4 in
Mounting Plate Size
3-3/4in x 4-3/8in
Mounting Plate Thickness
1/8in
Inside Slot Spacing - Width
2.625 in
Outside Slot Spacing - Length
3.625 in
Inside Slot Spacing - Length
3 in
For Axle Dia.
3/8 in
Overall Wheel Width
1 1/4 in
Bolt Hole Spacing - Length
2.625 in
Mounting Plate Length
4 3/8 in
Outside Slot Spacing - Width
3 in
Mounting Plate Width
3 3/4 in

Details

Frame Finish
Zinc Plated
Caster Temp. Range Available
Yes
Load Rating
325 lb
Caster Frame Material
Steel
Application
Food Service Racks and Cases, Hotel Equipment, Institutional Equipment, Laundry Trucks, Stock Carts
Wheel Color
Gray
Thread Guards
No
Caster Brake Included
No
Standards
ANSI ICWM, NSF Listed
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Number of Wheels
1
Item
Rigid Caster
Caster Plate Hole Pattern
B
Features
Floor Protective, Noise Reduction
Inside Bolt Hole Spacing
3 in x 3 in
Caster Sub-Type
Rigid
Non-Marking
Yes
Extended Lead
No
Core Color
Gray
Caster Brake Type
No Brake
Replacement Wheel
Mfr. No. P-PRP-060x013/038K
Includes
Thread Guards
Wheel Bearing Type
Ball
Includes Thread Guards
No
Wheel/Tread Material
Thermoplastic Rubber
Wheel Core Material
Polypropylene
Load Rating Range
Light-Medium Duty
Tread Shape
Standard
Number of Mounting Holes
4
Operating Temperature Range
-20 Degrees To 125 Degrees F
Swivel Lock Type
No Lock Included
Wheel/Tread Hardness Rating
Firm
Wheel/Tread Color
Gray
System of Measurement
Inch
Caster Mounting Type
Plate
Series
P12 Series
Tread Color
Gray
ESD Conductive
No
Load Capacity
325 lb
Tread
Standard
Resistant To
High Chemical Resistance To Many Aggressive Substances
Load Capacity - Maximum
325 lb
Wheel Hardness Rating
90 Shore A
Wheel Bearing Material
Steel
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Caster Features
Debris-Resistant
Wheel Core Type
Solid
Mounting Plate Shape
Rectangle
Mounting Hole Type
Slot
Operating Temperature - Maximum
160 Degrees F
Operating Temperature - Minimum
-15 Degrees F

Description

Rigid, Plate Caster, Load Rating 325 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 1 1/4 in, Wheel/Tread Material Rubber, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
