  6. NSF-Listed Plate Caster, 600 lb. Ld Rating, Roller

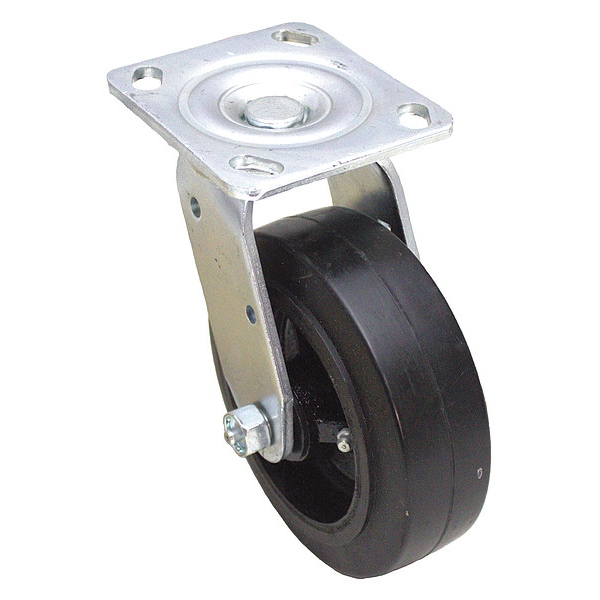

Zoro Select NSF-Listed Plate Caster, 600 lb. Ld Rating, Roller P21S-RY080R-14 - main
Shop ZORO SELECT

NSF-Listed Plate Caster, 600 lb. Ld Rating, Roller

  • Mfr # P21S-RY080R-14

  • Zoro # G7278177

product price:  $41.19
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Rubber
Caster Brake Type
No Brake
Wheel Dia.
8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P21S-RY080R-14
Zoro #
G7278177
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
8 in
Wheel Width
2 in
Mounting Height
9 1/2 in
Mounting Plate Size
4in x 4-1/2in
Mounting Plate Thickness
1/4in
Mounting Bolt Dia.
3/8 in
Swivel Radius
5 3/4 in
Overall Height
9-1/2in
For Axle Dia.
1/2 in
Inside Slot Spacing - Width
2.625 in
Bolt Hole Spacing - Length
2.625 in
Overall Wheel Width
2 in
Mounting Plate Length
4 1/2 in
Inside Slot Spacing - Length
3 in
Mounting Plate Width
4 in
Outside Slot Spacing - Width
3 in
Outside Slot Spacing - Length
3.625 in

Details

Item
Swivel Caster
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Rubber
Caster Brake Type
No Brake
Load Rating
600 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Roller
Wheel/Tread Color
Black
Wheel Hardness Rating
65 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
No
Number of Wheels
1
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Inside Bolt Hole Spacing
3 in x 3 in
Caster Plate Hole Pattern
B
Frame Finish
Zinc Plated
Wheel Color
Black
Caster Brake Included
No
Thread Guards
No
Replacement Wheel
Mfr. No. P-RY-080x020/050R
Standards
ANSI ICWM, NSF Listed
Extended Lead
No
Caster Temp. Range Available
Yes
Features
Noise Reduction
Application
Dollies, Floor Trucks, Material Handling Containers, Platform Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
Load Rating Range
Light-Medium Duty
Includes Thread Guards
No
Swivel Construction
Kingpin
Swivel Raceway Type
Double Ball
Wheel Core Material
Cast Iron
Wheel/Tread Hardness Rating
Soft
Swivel Lock Type
No Lock Included
Resistant To
Chemical Resistance To Many Aggressive Substances, Except Oils
Load Capacity
600 lb
Series
P21 Series
Accessories
Optional: P-DL21-14 (Directional Lock)
Tread Color
Black
ESD Conductive
No
Tread
Standard
Compatible With
P-RY-080X020/050R
Load Capacity - Maximum
600 lb
Mounting Hole Type
Slot
Caster Features
Corrosion-Resistant
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel
Wheel Core Type
Spoke
Mounting Plate Shape
Rectangle
Wheel Bearing Material
Steel
Operating Temperature Range
-40 Degrees To 180 Degrees F
Operating Temperature - Minimum
-20 Degrees F
Operating Temperature - Maximum
180 Degrees F

Description

Swivel, Plate Caster, Load Rating 600 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Rubber, Wheel Core Material Iron, Non-Marking No, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
