  11. NSF-Listed Plate Caster, 650 lb. Ld Rating, Roller

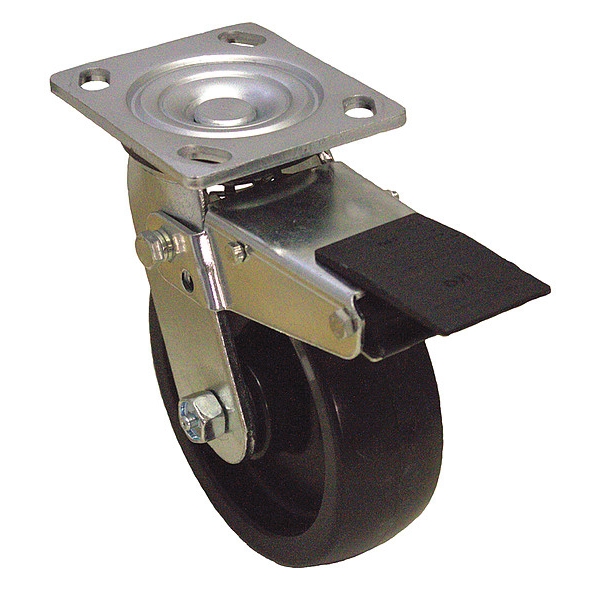

Zoro Select NSF-Listed Plate Caster, 650 lb. Ld Rating, Roller P21S-PB050R-14-TB - main

NSF-Listed Plate Caster, 650 lb. Ld Rating, Roller

  • Mfr # P21S-PB050R-14-TB

  • Zoro # G7279443

product price: $52.29
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Polypropylene
Caster Brake Type
Total Lock
Wheel Dia.
5 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P21S-PB050R-14-TB
Zoro #
G7279443
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
5 in
Wheel Width
2 in
Mounting Height
6 1/2 in
Mounting Plate Size
4in x 4-1/2in
Mounting Plate Thickness
1/4in
Mounting Bolt Dia.
3/8 in
Overall Height
6-1/2in
Swivel Radius
4-3/16 in
Overall Wheel Width
2 in
Outside Slot Spacing - Length
3.625 in
Inside Slot Spacing - Width
2.625 in
Bolt Hole Spacing - Length
2.625 in
For Axle Dia.
1/2 in
Mounting Plate Length
4 1/2 in
Outside Slot Spacing - Width
3 in
Mounting Plate Width
4 in
Inside Slot Spacing - Length
3 in

Details

Item
Swivel Caster with Total Lock
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Polypropylene
Caster Brake Type
Total Lock
Load Rating
650 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Roller
Wheel/Tread Color
Black
Wheel Hardness Rating
60 Shore D
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Black
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Inside Bolt Hole Spacing
3 in x 3 in
Caster Plate Hole Pattern
B
Extended Lead
No
Features
Chemical and Mechanical Lock of Tread to the Core
Caster Brake Included
Yes
Caster Temp. Range Available
Yes
Application
Retail, Industrial, Commercial, Corrosion Resistance
Replacement Wheel
Mfr. No. P-PB-050x020/050R
Frame Finish
Zinc Plated
Standards
RoHS, ICWM, NSF
Wheel Color
Black
Thread Guards
No
Includes
Total-Lock
Swivel Construction
Kingpin
Includes Thread Guards
No
Wheel/Tread Hardness Rating
Hard
Load Rating Range
Light-Medium Duty
Swivel Raceway Type
Double Ball
Swivel Lock Type
Total Lock
Wheel Core Material
Polypropylene
Tread Color
Black
Load Capacity
650 lb
Accessories
Optional: P-DL21-14 (Directional Lock)
ESD Conductive
No
Tread
Standard
Series
P21 Series
Resistant To
High Chemical Resistance To Many Aggressive Substances
Load Capacity - Maximum
650 lb
Compatible With
P-PB-050X020/050R
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Wheel Core Type
Solid
Brake Location
Rear
Mounting Plate Shape
Rectangle
Caster Features
Corrosion-Resistant, Maintenance Free
Wheel Bearing Material
Steel
Mounting Hole Type
Slot
Operating Temperature - Minimum
-20 Degrees F
Operating Temperature - Maximum
180 Degrees F
Operating Temperature Range
-20 Degrees To 180 Degrees F

Description

Swivel, Plate Caster, Load Rating 650 lb, Swivel Lock Type Total Lock, Wheel Dia. 5 in, Wheel Width 2 in, Wheel/Tread Material Polypropylene, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Total Lock, Tread Shape Standard
