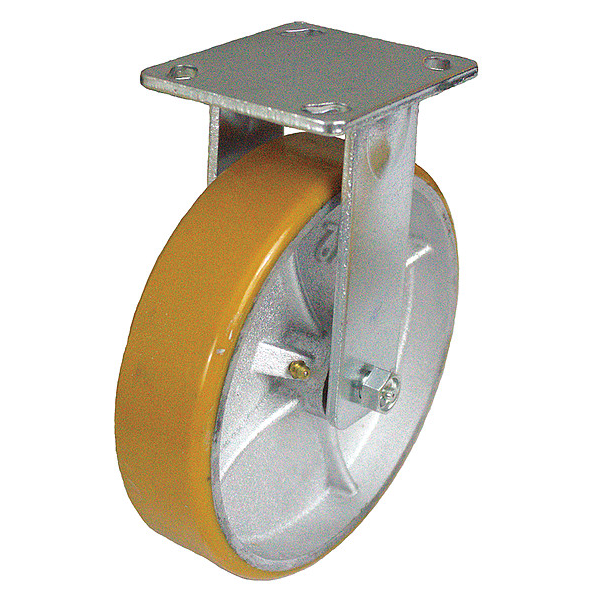

NSF-Listed Plate Caster, 700 lb. Ld Rating, Ball

  • Mfr # P21R-UY040KP-14

  • Zoro # G7279653

product price:
$
32.99
/ea

Key Features

Wheel Dia.
4 in
Swivel Radius
None- Rigid Caster
Features
Floor Protective
Number of Wheels
1
Extended Lead
No
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P21R-UY040KP-14
Zoro #
G7279653
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
4 in
Swivel Radius
None- Rigid Caster
Overall Height
5-5/8"
Mounting Bolt Dia.
3/8 in
Wheel Width
2 in
Mounting Height
5 5/8 in
Mounting Plate Size
4in x 4-1/2in
Inside Slot Spacing - Width
2.625 in
Outside Slot Spacing - Width
3 in
Outside Slot Spacing - Length
3.625 in
Mounting Plate Thickness
7/32 in
For Axle Dia.
1/2 in
Inside Slot Spacing - Length
3 in
Overall Wheel Width
2 in
Mounting Plate Length
4 in

Details

Item
Plate Caster
Features
Floor Protective
Number of Wheels
1
Extended Lead
No
Application
Dollies, Floor Trucks, Material Handling Containers, Platform Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
Caster Plate Hole Pattern
B
Caster Brake Included
No
Core Color
Silver
Caster Sub-Type
Rigid
Non-Marking
Yes
Thread Guards
No
Caster Temp. Range Available
Yes
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Standards
ANSI ICWM, NSF Listed
Inside Bolt Hole Spacing
3 in x 3 in
Wheel Color
Yellow
Load Rating
700 lb
Caster Frame Material
Steel
Replacement Wheel
Mfr. No. P-UY-040X020/050KP
Frame Finish
Zinc Plated
Caster Brake Type
No Brake
Includes Thread Guards
No
Wheel/Tread Hardness Rating
Firm
Wheel Core Material
Iron
Wheel Bearing Type
Ball
Tread Shape
Standard
Swivel Lock Type
No Lock Included
Number of Mounting Holes
4
Load Rating Range
Light-Medium Duty
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Yellow
System of Measurement
Inch
Caster Mounting Type
Plate
Resistant To
High Chemical Resistance To Many Aggressive Substances
Tread Color
Yellow
Series
P21 Series
ESD Conductive
No
Load Capacity
700 lb
Tread
Standard
Load Capacity - Maximum
700 lb
Wheel Hardness Rating
92 Shore A
Compatible With
P-UY-040X020/050KP
Mounting Hole Type
Slot
Wheel Core Type
Solid
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Mounting Plate Shape
Rectangle
Wheel Bearing Material
Steel
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Operating Temperature - Minimum
-20 Degrees F
Operating Temperature - Maximum
180 Degrees F
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Rigid, Plate Caster, Load Rating 700 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
