  6. Rgd Sold Rubr Whl Cstr, 10-1/4 in., 440 lb

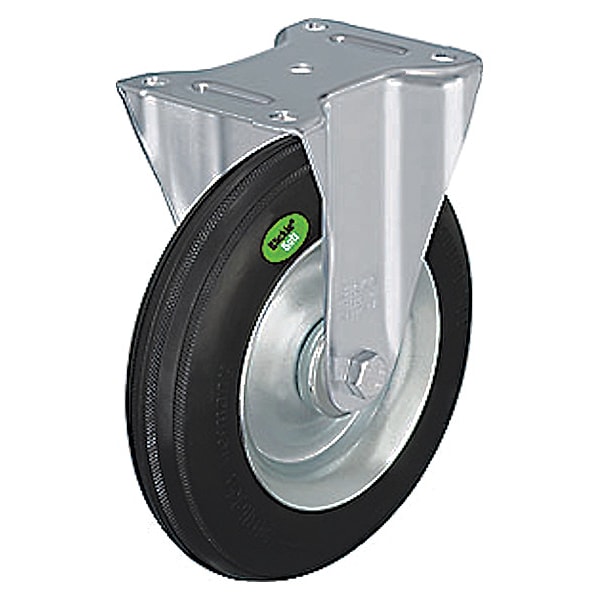

Zoro Select Rgd Sold Rubr Whl Cstr, 10-1/4 in., 440 lb B-VW 260K - main

Rgd Sold Rubr Whl Cstr, 10-1/4 in., 440 lb

  • Mfr # B-VW 260K

  • Zoro # G4544757

product price:  $241.99
/ea
Free Shipping & Returns

Key Features

Caster Temp. Range Available
No
Caster Sub-Type
Rigid
Overall Height
12-1/8in
Inside Bolt Hole Spacing
75 mm x 190 mm
Hub Color
Gray
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
B-VW 260K
Zoro #
G4544757
UPC #
-
Country of Origin
Germany

Dimensions

Overall Height
12-1/8in
Wheel Dia.
10 1/4 in
Wheel Width
3 3/8 in
Mounting Bolt Dia.
9/16 in
Mounting Height
12 1/8 in
Mounting Plate Size
120 mm x 220 mm
Mounting Plate Length
5 1/8 in
Bolt Hole Spacing - Width
2.969 in
Overall Wheel Width
3 3/8 in
Bolt Hole Spacing - Length
7.469 in
For Axle Dia.
12 mm
Mounting Plate Thickness
4 mm

Details

Caster Temp. Range Available
No
Item
Rigid Caster
Caster Sub-Type
Rigid
Inside Bolt Hole Spacing
75 mm x 190 mm
Hub Color
Gray
Tread
Standard
Outside Bolt Hole Spacing
75 mm x 190 mm
Load Rating
440 lb
Frame Finish
Zinc Plated
Number of Wheels
1
Caster Plate Hole Pattern
D
Load Rating Range
Light-Medium Duty
Standards
DIN EN 12532, ISO 9001
Non-Marking
No
Caster Brake Type
No Brake
Number of Mounting Holes
4
Wheel/Tread Hardness Rating
Soft
Wheel Bearing Type
Ball
Includes Thread Guards
No
Replacement Wheel
VW 260/20K
Caster Frame Material
Steel
Includes
Top Grease Seal
Wheel/Tread Material
Soft Rubber
Core Color
Silver
Caster Brake Included
No
Load Capacity
200 kg
Application
Retail, Industrial, Commercial
Extended Lead
No
Caster Mounting Type
Plate
Tread Color
Black
Tread Shape
Standard
Wheel Core Material
Pressed Steel
Resistant To
Chemical Resistance To Many Aggressive Substances, Except Oils
Series
B Series
ESD Conductive
No
System of Measurement
Metric
Wheel Hardness Rating
50 Shore A
Load Capacity - Maximum
440 lb
Mounting Plate Shape
Rectangle
Caster Features
Corrosion-Resistant
Wheel Core Type
Solid
Wheel Bearing Material
Steel
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel
Mounting Hole Type
Hole
Operating Temperature Range
-25 Degrees To 80 Degrees C

Description

Rigid, Plate Caster, Load Rating 440 lb, Wheel Dia. 10 1/4 in, Wheel Width 3 3/8 in, Wheel/Tread Material Rubber, Non-Marking No, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
