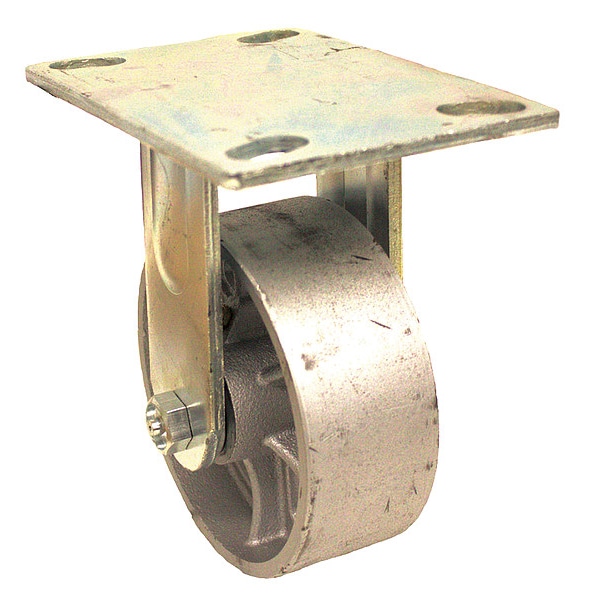

Zoro Select NSF-Listed Plate Caster, 700 lb. Ld Rating, Roller P21R-C040R-16 - main

NSF-Listed Plate Caster, 700 lb. Ld Rating, Roller

  • Mfr # P21R-C040R-16

  • Zoro # G7279979

product price:  $25.89
/ea

Key Features

Standards
ANSI ICWM, NSF Listed
Wheel Width
2 in
Core Color
Gray
Caster Brake Included
No
Thread Guards
No
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P21R-C040R-16
Zoro #
G7279979
UPC #
-
Country of Origin
China

Dimensions

Wheel Width
2 in
Wheel Dia.
4 in
Swivel Radius
None- Rigid Caster
Overall Height
5-5/8in
Mounting Bolt Dia.
1/2 in
Mounting Plate Size
4-1/2in x 6-1/4in
Mounting Height
5 5/8 in
Overall Wheel Width
2 in
Mounting Plate Length
6 1/4 in
Outside Slot Spacing - Length
5.25 in
Mounting Plate Width
4 1/2 in
Mounting Plate Thickness
1/4in
For Axle Dia.
1/2 in
Bolt Hole Spacing - Length
2.438 in
Inside Slot Spacing - Length
4.938 in
Inside Slot Spacing - Width
2.438 in
Outside Slot Spacing - Width
3.375 in

Details

Item
Rigid Caster
Standards
ANSI ICWM, NSF Listed
Core Color
Gray
Caster Brake Included
No
Thread Guards
No
Application
Dollies, Floor Trucks, Material Handling Containers, Platform Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
Load Rating
700 lb
Features
Push/Pull Force Reduction
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Caster Frame Material
Steel
Replacement Wheel
Mfr. No. P-C-040x020/050R
Caster Temp. Range Available
Yes
Non-Marking
No
Caster Sub-Type
Rigid
Caster Plate Hole Pattern
A
Frame Finish
Zinc Plated
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Number of Wheels
1
Extended Lead
No
Wheel Color
Silver
Caster Brake Type
No Brake
Number of Mounting Holes
4
Wheel/Tread Material
Cast Iron
Wheel/Tread Hardness Rating
Extra Hard
Includes Thread Guards
No
Load Rating Range
Light-Medium Duty
Tread Shape
Standard
Wheel Core Material
Cast Iron
Swivel Lock Type
No Lock Included
Wheel Bearing Type
Roller
Wheel/Tread Color
Silver
System of Measurement
Inch
Caster Mounting Type
Plate
ESD Conductive
No
Tread Color
Silver
Load Capacity
700 lb
Series
P21 Series
Tread
Standard
Resistant To
High Chemical Resistance To Many Aggressive Substances
Compatible With
P-C-040X020/050R
Load Capacity - Maximum
700 lb
Wheel Bearing Material
Steel
Mounting Plate Shape
Rectangle
Wheel Core Type
Solid
Caster Features
Corrosion-Resistant
For Surface Type
Grease, Metal Scrap, Oil, Rubber, Steel, Wood
Mounting Hole Type
Slot
Wheel Hardness Rating
180-220 BHN
Operating Temperature - Maximum
250 Degrees F
Operating Temperature - Minimum
-20 Degrees F
Operating Temperature Range
Up To 800 Degrees F

Description

Rigid, Plate Caster, Load Rating 700 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 2 in, Wheel/Tread Material Iron, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
