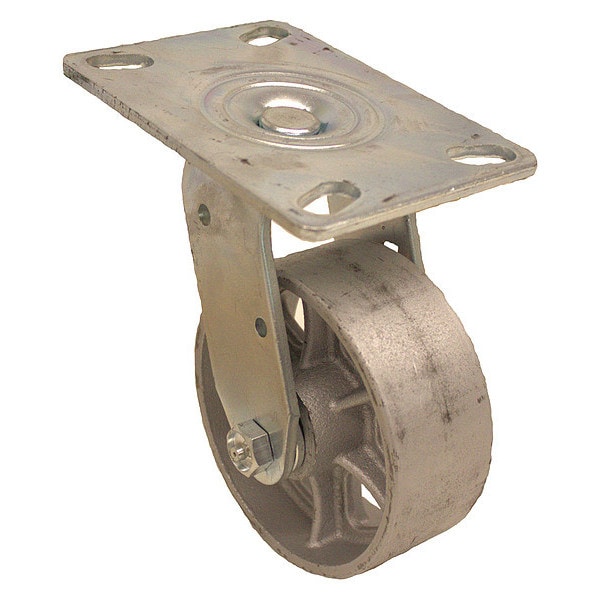

NSF-Listed Plate Caster, 700 lb. Ld Rating, Roller

  • Mfr # P21S-C040R-16
  • Zoro # G7279848
product price:
$
33.79
/ea

Key Features

Overall Height
5-5/8"
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Caster Frame Material
Steel
Load Rating
700 lb
Wheel Width
2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
P21S-C040R-16
Zoro #
G7279848
UPC #
-
Country of Origin
China
Caster Sub-Type
Swivel
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Caster Frame Material
Steel
Load Rating
700 lb
Frame Finish
Zinc Plated
Extended Lead
No
Core Color
Silver
Application
Dollies, Floor Trucks, Material Handling Containers, Platform Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Thread Guards
No
Caster Plate Hole Pattern
A
Features
Push/Pull Force Reduction
Caster Temp. Range Available
Yes
Standards
ANSI ICWM, NSF Listed
Wheel Color
Silver
Number of Wheels
1
Replacement Wheel
Mfr. No. P-C-040X020/050R
Non-Marking
Yes
Caster Brake Included
No
Item
Plate Caster
Caster Brake Type
No Brake
Swivel Raceway Type
Double Ball
Swivel Construction
Kingpin
Load Rating Range
Light-Medium Duty
Wheel/Tread Hardness Rating
Extra Hard
Number of Mounting Holes
4
Wheel Core Material
Iron
Wheel Bearing Type
Roller
Wheel/Tread Material
Iron
Tread Shape
Standard
Includes Thread Guards
No
Swivel Lock Type
No Lock Included
Wheel/Tread Color
Silver
System of Measurement
Inch
Tread
Standard
Resistant To
High Chemical Resistance To Many Aggressive Substances
Series
P21 Series
ESD Conductive
No
Load Capacity
700 lb
Tread Color
Silver
Accessories
Optional: P-DL21-16 (Directional Lock) (Directional Lock)
Caster Mounting Type
Plate
Compatible With
P-C-040X020/050R
Load Capacity - Maximum
700 lb
Wheel Core Type
Solid
Caster Features
Corrosion-Resistant
Mounting Plate Shape
Rectangle
For Surface Type
Grease, Metal Scrap, Oil, Rubber, Steel, Wood
Wheel Bearing Material
Steel
Wheel Hardness Rating
145 HB
Mounting Hole Type
Slot
Operating Temperature - Maximum
250 Degrees F
Operating Temperature - Minimum
-20 Degrees F
Operating Temperature Range
Up To 800 Degrees F

Dimensions

Overall Height
5-5/8"
Wheel Width
2 in
Mounting Bolt Dia.
1/2 in
Wheel Dia.
4 in
Swivel Radius
3 5/8 in
Mounting Plate Size
4-1/2in x 6-1/4in
Mounting Height
5 5/8 in
Outside Slot Spacing - Width
3.375 in
Mounting Plate Width
4 1/2 in
Outside Slot Spacing - Length
5.25 in
Mounting Plate Thickness
7/32 in
For Axle Dia.
1/2 in
Mounting Plate Length
6 1/4 in
Inside Slot Spacing - Width
2.438 in
Inside Slot Spacing - Length
4.938 in
Overall Wheel Width
2 in
Bolt Hole Spacing - Length
2.438 in
Fits Chest Size
Push/Pull Force Reduction

Description

Swivel, Plate Caster, Load Rating 700 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 2 in, Wheel/Tread Material Iron, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
