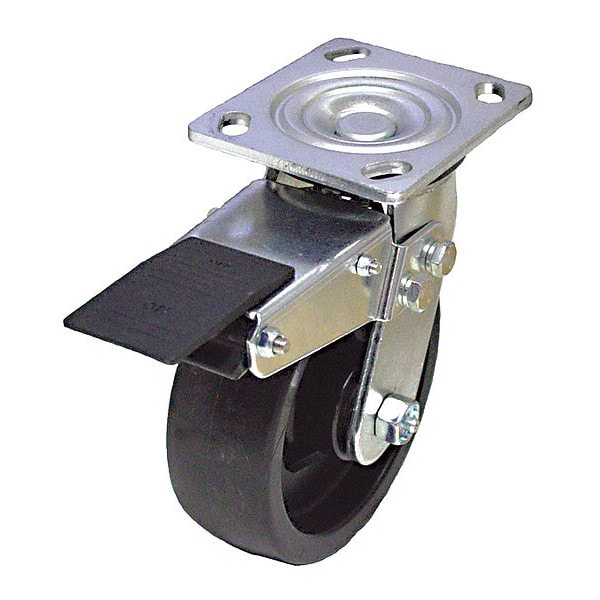

Zoro Select NSF-Listed Plate Caster, 700 lb. Ld Rating, Roller P21S-PB060R-14-TB - main

NSF-Listed Plate Caster, 700 lb. Ld Rating, Roller

  • Mfr # P21S-PB060R-14-TB

  • Zoro # G7279452

product price:  $53.19
/ea

Key Features

Caster Frame Material
Steel
Swivel Radius
6 in
Core Color
Black
Non-Marking
Yes
Standards
ANSI ICWM, NSF Listed
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P21S-PB060R-14-TB
Zoro #
G7279452
UPC #
-
Country of Origin
China

Dimensions

Swivel Radius
6 in
Mounting Bolt Dia.
3/8 in
Wheel Dia.
6 in
Overall Height
7-1/2in
Wheel Width
2 in
Mounting Height
7 1/2 in
Mounting Plate Size
4in x 4-1/2in
Inside Slot Spacing - Width
2.625 in
Mounting Plate Length
4 1/2 in
Bolt Hole Spacing - Length
2.625 in
Outside Slot Spacing - Length
3.625 in
Inside Slot Spacing - Length
3 in
Outside Slot Spacing - Width
3 in
Overall Wheel Width
2 in
Mounting Plate Width
4 in
Mounting Plate Thickness
1/4in
For Axle Dia.
1/2 in

Details

Caster Frame Material
Steel
Core Color
Black
Non-Marking
Yes
Standards
ANSI ICWM, NSF Listed
Wheel Color
Black
Inside Bolt Hole Spacing
3 in x 3 in
Caster Brake Type
Total Lock
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Frame Finish
Zinc Plated
Load Rating
700 lb
Caster Sub-Type
Swivel
Application
Dollies, Floor Trucks, Material Handling Containers, Platform Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
Features
Chemical and Mechanical Lock of Tread to the Core
Caster Temp. Range Available
Yes
Item
Swivel Caster with Total Lock
Replacement Wheel
Mfr. No. P-PB-060x020/050R
Extended Lead
No
Caster Plate Hole Pattern
B
Number of Wheels
1
Thread Guards
No
Caster Brake Included
Yes
Includes
Total-Lock
Includes Thread Guards
No
Load Rating Range
Light-Medium Duty
Wheel Core Material
Polypropylene
Swivel Raceway Type
Double Ball
Wheel Bearing Type
Roller
Wheel/Tread Hardness Rating
Hard
Swivel Construction
Kingpin
Swivel Lock Type
Total Lock
Tread Shape
Standard
Number of Mounting Holes
4
Wheel/Tread Material
Polypropylene
Wheel/Tread Color
Black
System of Measurement
Inch
ESD Conductive
No
Tread
Standard
Tread Color
Black
Resistant To
High Chemical Resistance To Many Aggressive Substances
Series
P21 Series
Load Capacity
700 lb
Caster Mounting Type
Plate
Load Capacity - Maximum
700 lb
Wheel Hardness Rating
60 Shore D
Compatible With
P-PB-060X020/050R
Mounting Plate Shape
Rectangle
Mounting Hole Type
Slot
Brake Location
Rear
Wheel Bearing Material
Steel
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Wheel Core Type
Solid
Caster Features
Corrosion-Resistant, Maintenance Free
Operating Temperature Range
-20 Degrees To 180 Degrees F
Operating Temperature - Minimum
-20 Degrees F
Operating Temperature - Maximum
180 Degrees F

Description

Swivel, Plate Caster, Load Rating 700 lb, Swivel Lock Type Total Lock, Wheel Dia. 6 in, Wheel Width 2 in, Wheel/Tread Material Polypropylene, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Total Lock, Tread Shape Standard
