  11. NSF-Listed Plate Caster, 700 lb. Ld Rating, Roller
Zoro Select NSF-Listed Plate Caster, 700 lb. Ld Rating, Roller P21S-PH033R-14 - main

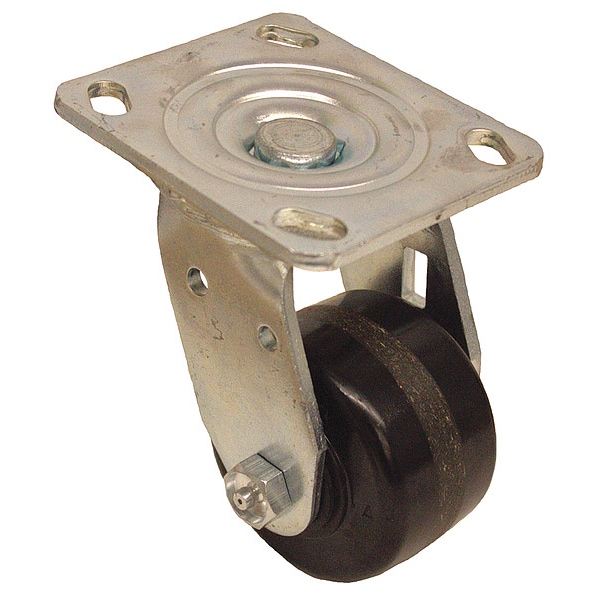

NSF-Listed Plate Caster, 700 lb. Ld Rating, Roller

  • Mfr # P21S-PH033R-14

  • Zoro # G9462947

product price: $24.19
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Phenolic
Caster Brake Type
No Brake
Wheel Dia.
3 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P21S-PH033R-14
Zoro #
G9462947
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
3 in
Wheel Width
2 in
Mounting Height
5 1/4 in
Mounting Plate Size
4in x 4-1/2in
Mounting Plate Thickness
1/4in
Mounting Bolt Dia.
3/8 in
Overall Height
5-1/4in
Swivel Radius
3 in
Outside Slot Spacing - Length
3.625 in
Outside Slot Spacing - Width
3 in
Inside Slot Spacing - Length
3 in
Mounting Plate Width
4 in
For Axle Dia.
1/2 in
Overall Wheel Width
2 in
Mounting Plate Length
4 1/2 in
Inside Slot Spacing - Width
2.625 in

Details

Item
Swivel Caster
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Phenolic
Caster Brake Type
No Brake
Load Rating
700 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Roller
Wheel/Tread Color
Black
Wheel Hardness Rating
Rockwell 102E
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Black
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Inside Bolt Hole Spacing
3 in x 3 in
Caster Plate Hole Pattern
B
Frame Finish
Zinc Plated
Thread Guards
No
Wheel Color
Black
Extended Lead
No
Application
Retail, Industrial, Commercial
Caster Brake Included
No
Caster Temp. Range Available
Yes
Standards
RoHS, ICWM, NSF
Replacement Wheel
Mfr. No. P-PH-033x020/050R-001
Features
Floor Protective
Swivel Raceway Type
Double Ball
Swivel Lock Type
No Lock Included
Wheel/Tread Hardness Rating
Hard
Load Rating Range
Light-Medium Duty
Wheel Core Material
Phenolic
Includes Thread Guards
No
Swivel Construction
Kingpin
Resistant To
High Chemical Resistance To Many Aggressive Substances
Load Capacity
700 lb
Accessories
Optional: P-DL21-14 (Directional Lock)
Series
P21 Series
Tread
Standard
ESD Conductive
No
Tread Color
Black
Compatible With
US_P-PH-033X020/050R
Load Capacity - Maximum
700 lb
Caster Features
Corrosion-Resistant
Mounting Plate Shape
Rectangle
Wheel Bearing Material
Steel
Mounting Hole Type
Slot
Wheel Core Type
Solid
For Surface Type
Grease, Metal Scrap, Oil, Rubber, Steel, Wood
Operating Temperature - Maximum
250 Degrees F
Operating Temperature Range
-40 Degrees To 250 Degrees F
Operating Temperature - Minimum
-20 Degrees F

Description

Swivel, Plate Caster, Load Rating 700 lb, Swivel Lock Type No Lock Included, Wheel Dia. 3 in, Wheel Width 2 in, Wheel/Tread Material Phenolic, Wheel Core Material Phenolic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
