  11. NSF-Listed Plate Caster, 750 lb. Load Rating, Swivel
Shop All Plate Casters
Zoro Select

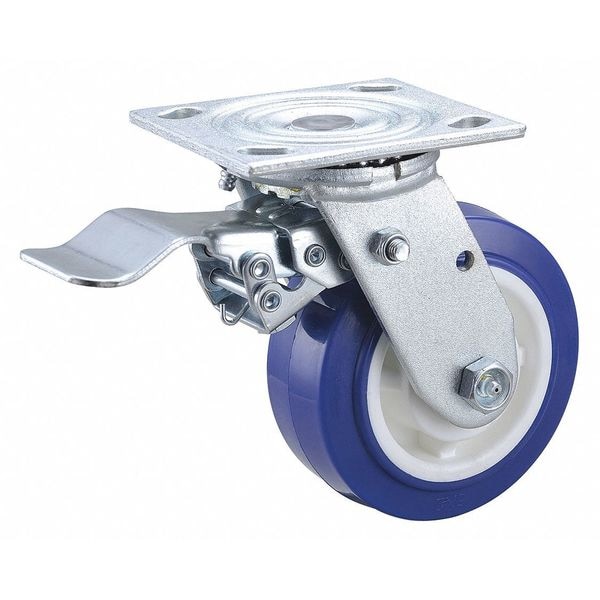

NSF-Listed Plate Caster, 750 lb. Load Rating, Swivel

product price: $29.15
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Caster Brake Included Yes
  • Caster Load Rating Range Light-Medium Duty
  • Caster Sub-Type Swivel
  • Caster Wheel Shape Standard
  • Caster Wheel/Tread Material Polyurethane
See all product information

Product Information

Dimensions

Overall Height 6-1/2"
Wheel Dia. 5 in
Wheel Width 2 in
Stem Dia. No Stem
Plate Size 4" x 4-1/2"
Mounting Bolt Dia. 3/8 in
Caster Plate Size 4" x 4-1/2"
Swivel Radius 4 1/4 in
Mounting Plate Size 4 in x 4 1/2 in
Mounting Height 6 1/2 in

Details

Caster Brake Included Yes
Caster Load Rating Range Light-Medium Duty
Caster Sub-Type Swivel
Caster Wheel Shape Standard
Caster Wheel/Tread Material Polyurethane
Load Rating 750 lb
Number of Wheels 1
Caster Stem Type No Stem/Plate Included
Wheel Color Blue
Caster Raceway Double Ball
Caster Temp. Range Available Yes
Caster Swivel Lock Type Total Lock
Thread Guards No
Caster Temp. Range -40 Degrees to 175 Degrees F
Durometer 95 Shore A
Caster Brake Type Total Lock Brake
Extended Lead No
Caster Plate Hole Pattern B
Replacement Wheel 1ULF3
Frame Material Steel
Caster Core Material Polyolefin
Non-Marking Yes
Core Color White
Inside Bolt Hole Spacing 3 in x 3 in
Caster Product Group Swivel Caster with Total Lock
Application General Purpose
Plate Caster Bolt Hole Pattern B
Caster Wheel Bearings Delrin
Caster Plate Thickness 7/32"
Item NSF-Listed Sanitary Plate Caster
Outside Bolt Hole Spacing 2-5/8 in x 3-5/8 in
Caster Frame Material Steel
Caster Min. Temp. -40 Degrees F
Standards NSF Listed
Frame Finish Zinc Plated
Caster Max. Temp. 175 Degrees F
Plate Thickness 7/32"
Number of Mounting Holes 4
Wheel Core Material Plastic
Mounting Plate Bolt Hole Pattern B
Wheel/Tread Hardness Rating Firm
Includes Thread Guards No
Swivel Lock Type Total Lock
Wheel Bearing Type Delrin
Wheel/Tread Hardness 95 Shore A
Tread Shape Standard
Swivel Raceway Type Double Ball
Swivel Construction Kingpin
Load Rating Range 300 to 999 lb
Wheel/Tread Material Polyurethane
Wheel/Tread Color Blue

Description

Swivel, NSF-Listed Sanitary Plate Caster, Load Rating 750 lb, Swivel Lock Type Total Lock, Wheel Dia. 5 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Plastic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Total Lock Brake, Tread Shape Standard
