  6. NSF-Listed Plate Caster, 770 lb. Ld Rating, Roller
Zoro Select NSF-Listed Plate Caster, 770 lb. Ld Rating, Roller P21R-URP060R-14 - main

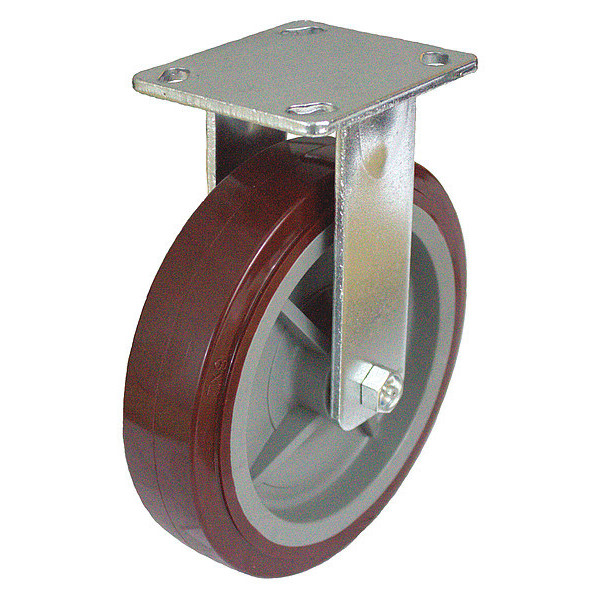

NSF-Listed Plate Caster, 770 lb. Ld Rating, Roller

  • Mfr # P21R-URP060R-14

  • Zoro # G7279358

product price:  $28.85
/ea

Key Features

Application
Dollies, Floor Trucks, Material Handling Containers, Platform Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
Caster Brake Included
No
Caster Plate Hole Pattern
B
Thread Guards
No
Caster Sub-Type
Rigid
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P21R-URP060R-14
Zoro #
G7279358
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
6 in
Overall Height
7-1/2in
Wheel Width
2 in
Mounting Bolt Dia.
3/8 in
Swivel Radius
None- Rigid Caster
Mounting Height
7 1/2 in
Mounting Plate Size
4in x 4-1/2in
Outside Slot Spacing - Width
3 in
Mounting Plate Length
4 in
Outside Slot Spacing - Length
3.625 in
Inside Slot Spacing - Length
3 in
For Axle Dia.
1/2 in
Overall Wheel Width
2 in
Mounting Plate Thickness
1/4in
Inside Slot Spacing - Width
2.625 in

Details

Application
Dollies, Floor Trucks, Material Handling Containers, Platform Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
Caster Brake Included
No
Caster Plate Hole Pattern
B
Thread Guards
No
Caster Sub-Type
Rigid
Number of Wheels
1
Extended Lead
No
Replacement Wheel
Mfr. No. P-URP-060x020/050R
Inside Bolt Hole Spacing
3 in x 3 in
Caster Frame Material
Steel
Core Color
Gray
Frame Finish
Zinc Plated
Non-Marking
Yes
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Caster Temp. Range Available
Yes
Load Rating
770 lb
Wheel Color
Red
Features
Floor Protective
Item
Rigid Caster
Standards
ANSI ICWM, NSF Listed
Caster Brake Type
No Brake
Swivel Lock Type
No Lock Included
Includes Thread Guards
No
Tread Shape
Standard
Wheel Bearing Type
Roller
Number of Mounting Holes
4
Load Rating Range
Light-Medium Duty
Wheel/Tread Hardness Rating
Hard
Wheel Core Material
Polypropylene
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Red
System of Measurement
Inch
Tread
Standard
Resistant To
High Chemical Resistance To Many Aggressive Substances
ESD Conductive
No
Load Capacity
770 lb
Tread Color
Red
Caster Mounting Type
Plate
Series
P21 Series
Compatible With
P-URP-060X020/050R
Load Capacity - Maximum
900 lb
Wheel Hardness Rating
55 Shore D
Mounting Hole Type
Slot
Wheel Core Type
Solid
Wheel Bearing Material
Steel
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Mounting Plate Shape
Rectangle
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Operating Temperature - Minimum
-20 Degrees F
Operating Temperature Range
-15 Degrees To 160 Degrees F
Operating Temperature - Maximum
180 Degrees F

Description

Rigid, Plate Caster, Load Rating 770 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
