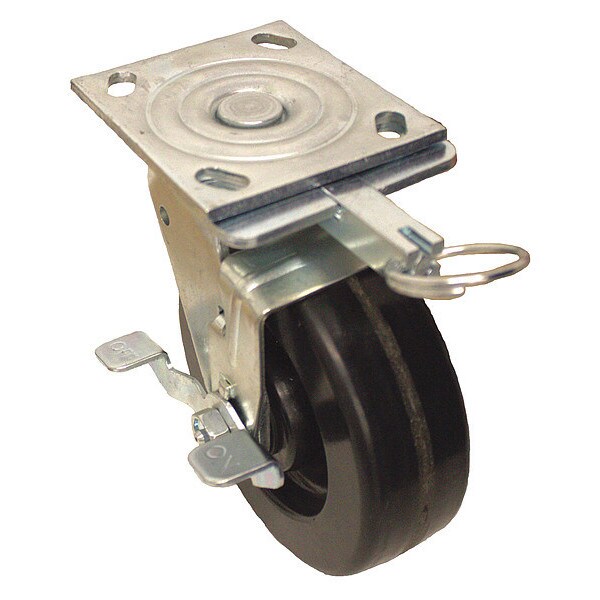

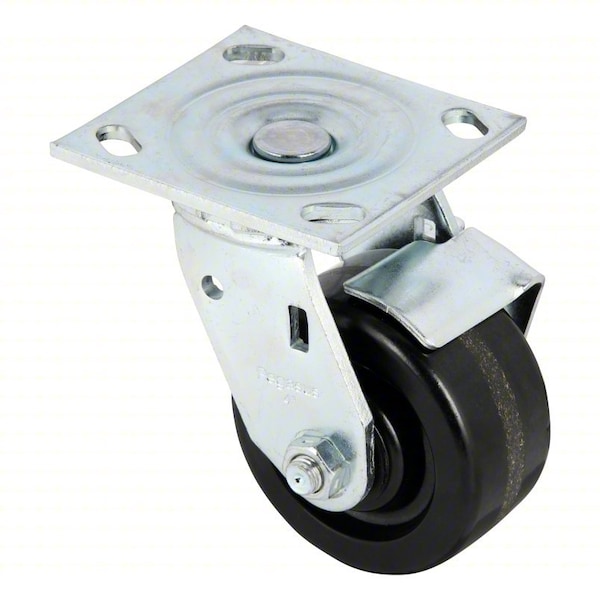

NSF-Listed Plate Caster, 800 lb. Ld Rating, Roller

  • Mfr # P21S-PH040R-14-WB-DL
  • Zoro # G7279872
product price:
$
42.29
/ea

Key Features

Caster Sub-Type
Swivel
Non-Marking
Yes
Replacement Wheel
Mfr. No. P-PH-040X020/050R
Wheel Width
2 in
Wheel Dia.
4 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P21S-PH040R-14-WB-DL
Zoro #
G7279872
UPC #
-
Country of Origin
China

Dimensions

Wheel Width
2 in
Wheel Dia.
4 in
Mounting Bolt Dia.
3/8 in
Overall Height
5-5/8"
Swivel Radius
3 7/8 in
Mounting Plate Size
4in x 4-1/2in
Mounting Height
5 5/8 in
Mounting Plate Length
4 1/2 in
Inside Slot Spacing - Length
3 in
Outside Slot Spacing - Length
3.625 in
Mounting Plate Width
4 in
Inside Slot Spacing - Width
2.625 in
Mounting Plate Thickness
7/32 in
Outside Slot Spacing - Width
3 in
Overall Wheel Width
2 in
For Axle Dia.
1/2 in
Fits Chest Size
Floor Protective

Details

Caster Sub-Type
Swivel
Non-Marking
Yes
Replacement Wheel
Mfr. No. P-PH-040X020/050R
Number of Wheels
1
Thread Guards
No
Load Rating
800 lb
Extended Lead
No
Caster Temp. Range Available
Yes
Caster Brake Type
Directional Lock, Side Brake
Inside Bolt Hole Spacing
3 in x 3 in
Application
Dollies, Floor Trucks, Material Handling Containers, Platform Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
Caster Frame Material
Steel
Wheel Color
Black
Core Color
Black
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Features
Floor Protective
Item
Plate Caster
Frame Finish
Zinc Plated
Standards
ANSI ICWM, NSF Listed
Caster Brake Included
Yes
Caster Plate Hole Pattern
B
Includes
Strap Type Brake, 4-Position Directional Lock
Load Rating Range
Light-Medium Duty
Swivel Raceway Type
Double Ball
Swivel Lock Type
4-Position Directional Lock
Swivel Construction
Kingpin
Wheel Core Material
Phenolic
Includes Thread Guards
No
Number of Mounting Holes
4
Wheel/Tread Hardness Rating
Hard
Wheel Bearing Type
Roller
Tread Shape
Standard
Wheel/Tread Material
Phenolic
Wheel/Tread Color
Black
System of Measurement
Inch
ESD Conductive
No
Tread Color
Black
Caster Mounting Type
Plate
Resistant To
High Chemical Resistance To Many Aggressive Substances
Load Capacity
800 lb
Series
P21 Series
Tread
Standard
Load Capacity - Maximum
800 lb
Compatible With
P-PH-040X020/050R
Wheel Bearing Material
Steel
Wheel Core Type
Solid
Mounting Plate Shape
Rectangle
For Surface Type
Grease, Metal Scrap, Oil, Rubber, Steel, Wood
Mounting Hole Type
Slot
Caster Features
Corrosion-Resistant
Brake Location
Side
Wheel Hardness Rating
102 HRE
Operating Temperature Range
-40 Degrees To 250 Degrees F
Operating Temperature - Maximum
250 Degrees F
Operating Temperature - Minimum
-20 Degrees F

Description

Swivel, Plate Caster, Load Rating 800 lb, Swivel Lock Type 4-Position Directional Lock, Wheel Dia. 4 in, Wheel Width 2 in, Wheel/Tread Material Phenolic, Wheel Core Material Phenolic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Directional Lock, Side Brake, Tread Shape Standard
