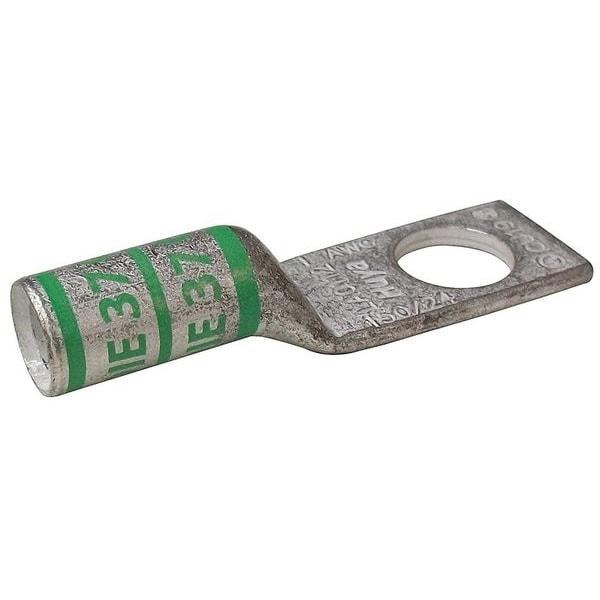

One-Hole Compression Lug, 1 AWG Max, #10 Stud, Long Barrel, Copper, Green
Mfr # 24C316
Zoro # G4659094
product price: $2.79
/eaKey Features
Cable Size
1 AWG
Connector Type
Straight Barrel
Width
0.68"
Material
Copper
Length
1.78"
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
24C316
Zoro #
G4659094
UPC #
190735431627
Country of Origin
China
Dimensions
Cable Size
1 AWG
Width
0.68"
Length
1.78"
Barrel Length
Long
Length (Straight Wireway)
1.78 in
For Stud Size
#10
Tongue Length
0.65 in
For Stranded Copper Wire Size - Minimum
1 AWG
Barrel Size
Long
Barrel Inside Diameter
0.36 in
Overall Width
0.68 in
Tongue Width
0.68 in
Barrel Outside Diameter
0.47 in
Overall Length
1.78 in
Strip Length
15/16 in
Hole Size
0.205 in
Tongue Thickness
0.11 in
For Stranded Copper Wire Size - Maximum
1 AWG
For Wire Size
1 AWG
Description
One-Hole Lug Compression Connector, Barrel Size Long, Color Code Green, Die Code 37, Tongue Angle Straight, Tongue Width 0.68 in, For Conductor Material Copper, For Stud Size #10, For Stranded Copper Wire Size - Minimum 1 AWG, For Stranded Copper Wire Size - Maximum 1 AWG, Inspection Hole No, Material Copper, Maximum Operating Temperature 300 Degrees F, Maximum Voltage 600 V AC, Termination Style Crimp, Seam Style Seamless, Standards CSA Certified, UL Listed, Number of Holes 1
