Shop ZORO SELECT
See all product information

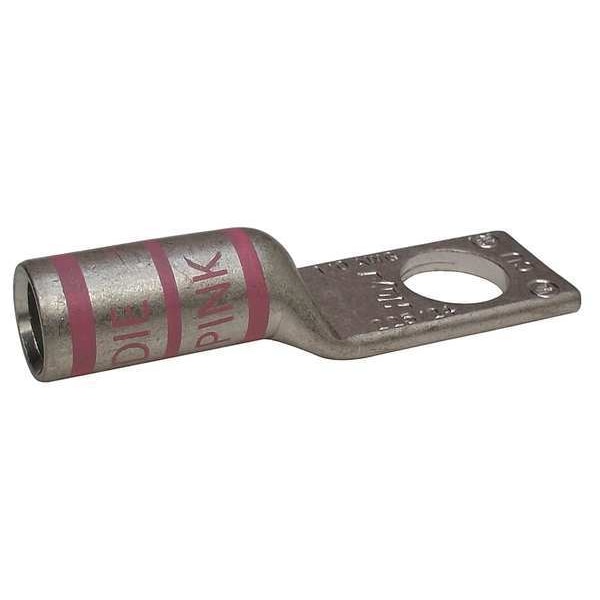

One-Hole Compression Lug, 1/0 AWG Max, 1/4 in Stud, Long Barrel, Copper, Pink
Mfr # 24D001
Zoro # G5206704
product price:Â $4.49
/eaKey Features
For Wire Size
1/0 AWG
For Conductor Material
Copper
For Stud Size
1/4 in
Material
Copper
Barrel Size
Long
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
- MFR #
- 24D001
- Zoro #
- G5206704
- UPC #
- 190735434116
- Country of Origin
- China
Dimensions
- For Wire Size
- 1/0 AWG
- For Stud Size
- 1/4 in
- Barrel Size
- Long
- Tongue Width
- 0.75 in
- Barrel Length
- Long
- Width
- 3/4"
- Cable Size
- 1/0
- Length
- 2.27"
- Length (Straight Wireway)
- 2.27 in
- Overall Length
- 2.27 in
- Hole Size
- 0.27 in
- Barrel Inside Diameter
- 0.39 in
- For Stranded Copper Wire Size - Minimum
- 1/0 AWG
- For Stranded Copper Wire Size - Maximum
- 1/0 AWG
- Tongue Length
- 0.64 in
- Tongue Thickness
- 0.12 in
- Strip Length
- 1 1/2 in
- Overall Width
- 0.75 in
- Barrel Outside Diameter
- 0.51 in
Description
One-Hole Lug Compression Connector, Barrel Size Long, Color Code Pink, Die Code 42, Tongue Angle Straight, Tongue Width 0.75 in, For Conductor Material Copper, For Stud Size 1/4 in, For Stranded Copper Wire Size - Minimum 1/0 AWG, For Stranded Copper Wire Size - Maximum 1/0 AWG, Inspection Hole Yes, Material Copper, Maximum Operating Temperature 300 Degrees F, Maximum Voltage 600 V AC, Termination Style Crimp, Seam Style Seamless, Standards CSA Certified, UL Listed, Number of Holes 1
