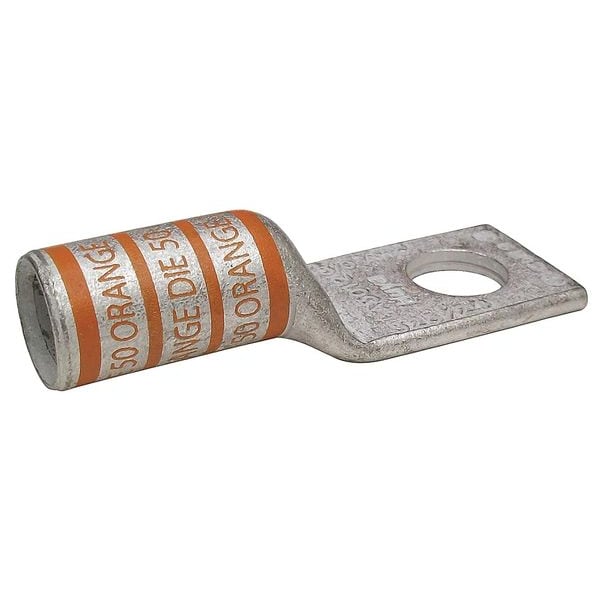

One-Hole Compression Lug, 3/0 AWG Max, 1/2 in Stud, Long Barrel, Copper, Orange
Mfr # 24C330
Zoro # G4666076
product price:Â $6.19
/eaKey Features
For Wire Size
3/0 AWG
For Conductor Material
Copper
For Stud Size
1/2 in
Material
Copper
Barrel Size
Long
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
- MFR #
- 24C330
- Zoro #
- G4666076
- UPC #
- 190735431764
- Country of Origin
- China
Dimensions
- For Wire Size
- 3/0 AWG
- For Stud Size
- 1/2 in
- Barrel Size
- Long
- Tongue Width
- 0.92 in
- Cable Size
- 3/0
- Barrel Length
- Long
- Length
- 2.72"
- Width
- 0.92"
- Length (Straight Wireway)
- 2.72 in
- Barrel Outside Diameter
- 0.63 in
- Tongue Length
- 1.25 in
- Barrel Inside Diameter
- 0.51 in
- Tongue Thickness
- 0.13 in
- Strip Length
- 1 1/4 in
- For Stranded Copper Wire Size - Minimum
- 3/0 AWG
- Overall Length
- 2.72 in
- Hole Size
- 0.53 in
- For Stranded Copper Wire Size - Maximum
- 3/0 AWG
- Overall Width
- 0.92 in
Description
One-Hole Lug Compression Connector, Barrel Size Long, Color Code Orange, Die Code 50, Tongue Angle Straight, Tongue Width 0.92 in, For Conductor Material Copper, For Stud Size 1/2 in, For Stranded Copper Wire Size - Minimum 3/0 AWG, For Stranded Copper Wire Size - Maximum 3/0 AWG, Inspection Hole No, Material Copper, Maximum Operating Temperature 300 Degrees F, Maximum Voltage 600 V AC, Termination Style Crimp, Seam Style Seamless, Standards CSA Certified, UL Listed, Number of Holes 1
