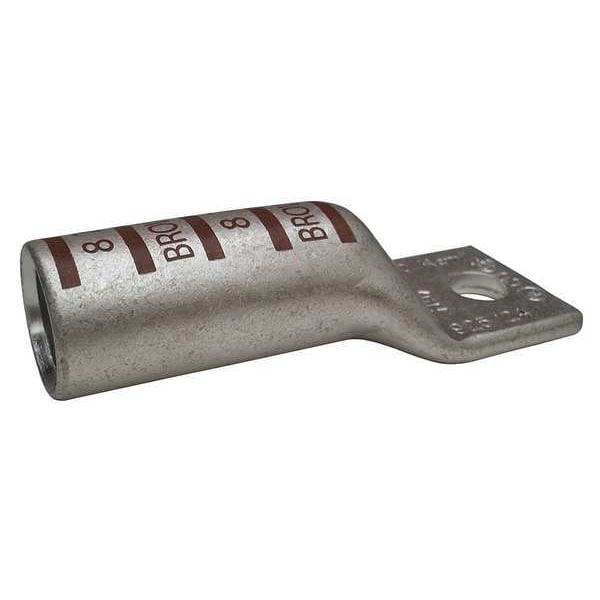

One-Hole Compression Lug, 500 kcmil Max, 3/8 in Stud, Long Barrel, Copper, Brown
Mfr # 24D011
Zoro # G5206722
product price:Â $12.79
/eaKey Features
For Wire Size
500 kcmil
For Conductor Material
Copper
For Stud Size
3/8 in
Material
Copper
Barrel Size
Long
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 24D011
- Zoro #
- G5206722
- UPC #
- 190735434215
- Country of Origin
- China
Dimensions
- For Wire Size
- 500 kcmil
- For Stud Size
- 3/8 in
- Barrel Size
- Long
- Tongue Width
- 1.55 in
- Cable Size
- 500 kcmil
- Length
- 3.68"
- Width
- 1.55"
- Barrel Length
- Long
- Length (Straight Wireway)
- 3.68 in
- Strip Length
- 2 3/8 in
- Tongue Thickness
- 0.22 in
- Tongue Length
- 0.83 in
- Barrel Outside Diameter
- 1.06 in
- Barrel Inside Diameter
- 0.84 in
- Overall Length
- 3.68 in
- For Stranded Copper Wire Size - Maximum
- 500 kcmil
- For Stranded Copper Wire Size - Minimum
- 500 kcmil
- Overall Width
- 1.55 in
- Hole Size
- 0.405 in
- Wire Rope Length
- 3.68 in
Description
Compression Lug, Barrel Size Long, Color Code Brown, Die Code 87, Tongue Angle Straight, Tongue Width 1.55 in, For Conductor Material Copper, For Stud Size 3/8 in, For Stranded Copper Wire Size - Minimum 500 kcmil, For Stranded Copper Wire Size - Maximum 500 kcmil, Inspection Hole Yes, Hole Center to Center Not Applicable, Material Copper, Max. Operating Temp. 257 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Seam Style Seamless, Standards UL Listed, Number of Holes 1
