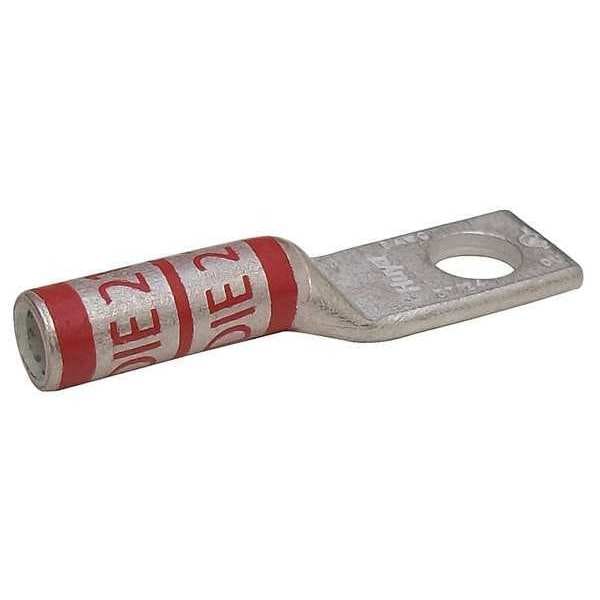

One-Hole Compression Lug, 8 AWG Max, 1/4 in Stud, Long Barrel, Copper, Red
Mfr # 24C318
Zoro # G4649802
product price: $1.49
/eaKey Features
For Wire Size
8 AWG
For Conductor Material
Copper
For Stud Size
1/4 in
Material
Copper
Barrel Size
Long
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
24C318
Zoro #
G4649802
UPC #
190735431641
Country of Origin
China
Dimensions
For Wire Size
8 AWG
For Stud Size
1/4 in
Barrel Size
Long
Tongue Width
0.42 in
Width
0.42"
Length
1.57"
Cable Size
8 AWG
Barrel Length
Long
Length (Straight Wireway)
1.57 in
For Stranded Copper Wire Size - Maximum
8 AWG
Hole Size
0.27 in
Tongue Thickness
0.08 in
Strip Length
13/16 in
For Stranded Copper Wire Size - Minimum
8 AWG
Overall Width
0.42 in
Barrel Inside Diameter
0.18 in
Tongue Length
0.65 in
Overall Length
1.57 in
Barrel Outside Diameter
0.27 in
Description
One-Hole Lug Compression Connector, Barrel Size Long, Color Code Red, Die Code 21, Tongue Angle Straight, Tongue Width 0.42 in, For Conductor Material Copper, For Stud Size 1/4 in, For Stranded Copper Wire Size - Minimum 8 AWG, For Stranded Copper Wire Size - Maximum 8 AWG, Inspection Hole No, Material Copper, Maximum Operating Temperature 300 Degrees F, Maximum Voltage 600 V AC, Termination Style Crimp, Seam Style Seamless, Standards UL Listed, Number of Holes 1, RoHS Compliant Yes
