  9. Panel-Mount Pressure Gauge, 0 to 1,000 psi, 2 1/2 in Dial, 1/4 in NPT, Center Back Location

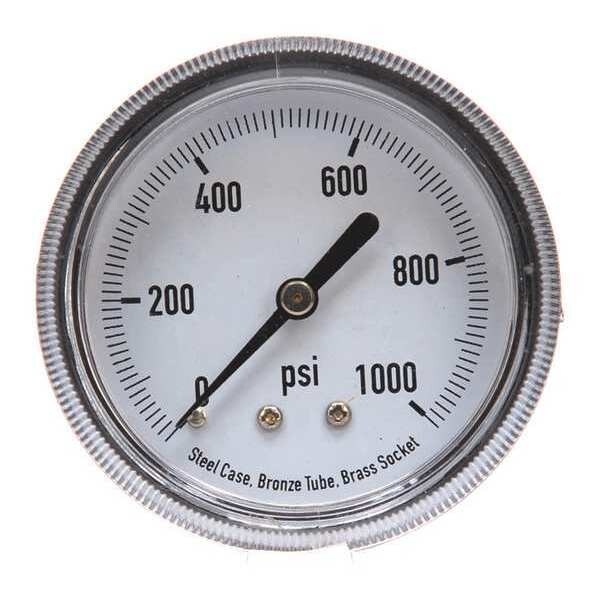

Zoro Select Panel-Mount Pressure Gauge, 0 to 1,000 psi, 2 1/2 in Dial, 1/4 in NPT, Center Back Location 4CFA5 - main

Panel-Mount Pressure Gauge, 0 to 1,000 psi, 2 1/2 in Dial, 1/4 in NPT, Center Back Location

  • Mfr # 4CFA5

  • Zoro # G0046785

product price: $6.19
/ea
Sold in multiples of 2 for $12.38

Key Features

Accuracy
+/-3-2-3%
Process Connection Location
Center Back
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
2 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4CFA5
Zoro #
G0046785
UPC #
190735501412
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
2 1/2 in
Nominal Dial Size
2 1/2 in
Nominal Dial Diameter
2 1/2 in

Details

Item
Panel-Mount Pressure Gauge
Accuracy
+/-3-2-3%
Process Connection Location
Center Back
Process Connection Type
NPT
Application
General Purpose
Gauge Case Material
Steel
Lens Material
Polycarbonate
Primary Pressure Range
0 to 1,000
Primary Scale Units
psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
Yes
Blowout Safety Back
No
Smallest Graduation
10 psi
Calibration Certificate Included
No
Gauge Primary Range Smallest Graduation
10
Gauge Application
U-Clamp
For Use With
Air, Water, Gas and Oils
Case Color
Black
Gauge Mounting Method
U Clamp
Socket Material
Brass
Case Material
Steel
Connection Type
MNPT
Wetted Materials
Brass / Bronze
Accuracy Scale
Mid-Scale
Includes Vent Plug
No
Includes Mounting Hardware
No
Sensor Material
Bronze
Dial Color
White
Removable Bezel
No
Pressure Gauge Type
Commercial Pressure Gauge
Ambient Operating Temperature Range
-40 Degrees to 150 Degrees F
Cleaned for Oxygen Service
No
Field Fillable
No
Dry Dampening Feature
None
Freeze Resistant Movement
No
Includes Calibration Certificate
No
Gauge Case Liquid
None
Process Connection Gender
Male
Scale Type
Single
Pressure Range Type
Pressure
Primary Scale Minor Graduations
10
Non-Sparking
No
Vibration Resistance
None
Maximum Pressure
1,000 psi
Operating Temperature Range
-40 Degrees to 150 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Primary Scale Pressure Measurement - Minimum
0 psi
Primary Scale Pressure Measurement - Maximum
1,000 psi
Case Liquid
None
Operating Temperature - Maximum
150 Degrees F

Description

Panel-Mount Pressure Gauge, Nominal Dial Size 2 1/2 in, Accuracy +/-3-2-3 Percent, Gauge Case Material Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Polycarbonate, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Center Back, Case Color Black, IP/NEMA Rating Not Rated, Primary Pressure Range 0 to 1,000, Dry Dampening Feature None, Vibration Resistance None, Dial Color White, Pressure Gauge Type Commercial Pressure Gauge
