Zoro Select Panel-Mount Pressure Gauge, 0 to 60 psi, 4 1/2 in Dial, 1/4 in NPT, Bottom Location 11A497 - main

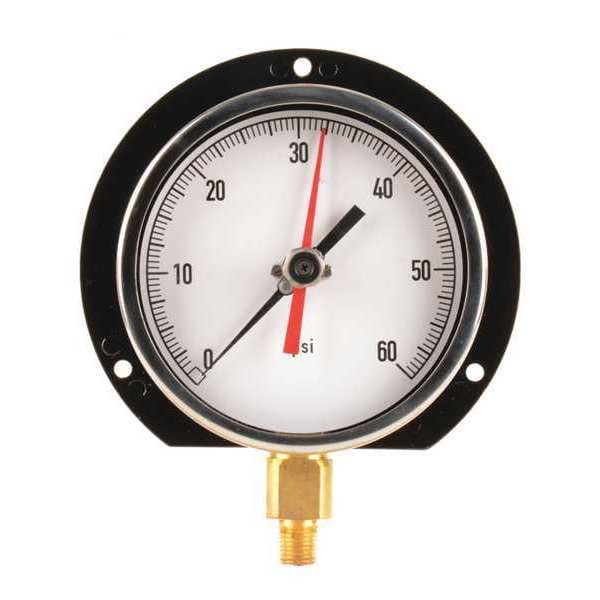

Panel-Mount Pressure Gauge, 0 to 60 psi, 4 1/2 in Dial, 1/4 in NPT, Bottom Location

  • Mfr # 11A497

  • Zoro # G4255246

product price: $72.99
/ea

Key Features

Accuracy
+/-0.5%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
4 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
11A497
Zoro #
G4255246
UPC #
190735378601
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
4 1/2 in
Nominal Dial Size
4 1/2 in
Nominal Dial Diameter
4 1/2 in

Details

Item
Panel-Mount Pressure Gauge
Accuracy
+/-0.5%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Process Industries
Gauge Case Material
Cast Aluminum
Lens Material
Polycarbonate
Primary Pressure Range
0 to 60
Primary Scale Units
psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
Yes
Blowout Safety Back
No
Smallest Graduation
0.5 psi
Calibration Certificate Included
No
Case Color
Black
For Use With
Non-Explosive Gas Or Liquid That Do Not Crystalize And Corrode Copper Alloy
Gauge Application
Process
Gauge Primary Range Smallest Graduation
0.5
Gauge Mounting Method
Surface
Socket Material
Brass
Case Material
Cast Aluminum
Wetted Materials
Brass / Bronze
Connection Type
MNPT
Standards
ASME
Shop By
Closeouts
Sensor Material
Bronze
Ambient Operating Temperature Range
-40 Degrees to 140 Degrees F
Removable Bezel
No
Vibration Resistance
None
Pressure Gauge Type
Process Pressure Gauge
Pressure Range Type
Pressure
Accuracy Scale
Full Scale
Freeze Resistant Movement
No
Field Fillable
No
Dry Dampening Feature
None
Gauge Case Liquid
None
Includes Calibration Certificate
No
Process Connection Gender
Male
Primary Scale Minor Graduations
0.5
Includes Vent Plug
No
Compatible Process Media
Non-Explosive Gas Or Liquid That Do Not Crystalize And Corrode Copper Alloy
Non-Sparking
No
Dial Color
White
Includes Mounting Hardware
No
Scale Type
Single
Cleaned for Oxygen Service
No
Maximum Pressure
60
Operating Temperature Range
-40 Degrees to 140 Degrees F
Primary Scale Pressure Measurement - Maximum
60 psi
Primary Scale Pressure Measurement - Minimum
0 psi
Operating Temperature - Maximum
140 Degrees F
Case Liquid
None
Operating Temperature - Minimum
-40 Degrees F

Description

Panel-Mount Pressure Gauge, Nominal Dial Size 4 1/2 in, Accuracy +/-0.5 Percent, Gauge Case Material Cast Aluminum, Process Connection Type NPT, Process Connection Gender Male, Lens Material Polycarbonate, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Black, IP/NEMA Rating Not Rated, Primary Pressure Range 0 to 60, Dry Dampening Feature None, Vibration Resistance None, Dial Color White, Pressure Gauge Type Process Pressure Gauge
