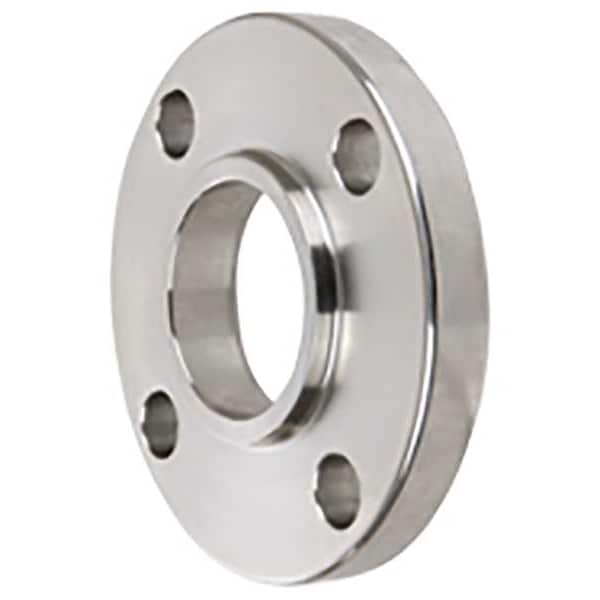

Pipe Flange, 316/316L SS, 3/4" Pipe Size
Mfr # 4381002210
Zoro # G500441676
Key Features
Specifications
Product Information
Dimensions
Details
Description
The ZORO SELECT - 4381002210 is a stainless steel slip-on pipe flange designed to facilitate pipe connection according to ASME standards. Made from 316/316L stainless steel, this flange features a raised face connection surface as per standard design that helps create a pressure-tight joint with gaskets and bolts. It conforms to ASME standards, including A182, B1.20.1, and B16.5, ensuring standardized dimensions and compatibility. The flange is rated Class 150, compatible with specified pressure ranges according to industry standards. The nominal pipe size for this flange is 3/4 inch, suitable for matching corresponding piping components.
Key Features:
- Flange type: Slip-On Flange, rated for use with pipe sizes specified in the product specifications
- Material: 316/316L stainless steel, as specified
- Raised face connection surface as per standard design
- Pressure class rating: Class 150
- Nominal pipe size: 3/4 inch
- Flange outside diameter: 3 7/8 inches, as specified
- Flange thickness: 1/2 inch, as specified
- Bolt circle diameter: 2 3/4 inches, as specified
- Bolt hole diameter: 5/8 inch, as specified
- Number of bolt holes: 4, as specified
- Meets industry standards as applicable
