  6. Plate Caster, 1000 lb. Ld Rating, Roller

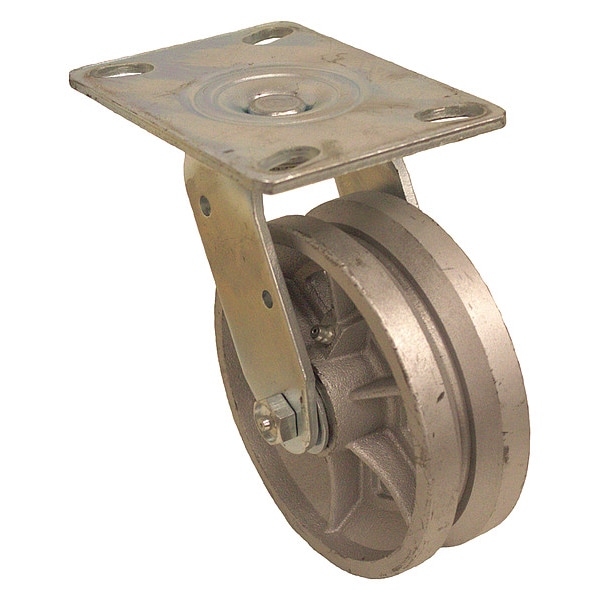

Zoro Select Plate Caster, 1000 lb. Ld Rating, Roller P21S-C060R-16-VG1 - main

Plate Caster, 1000 lb. Ld Rating, Roller

  • Mfr # P21S-C060R-16-VG1

  • Zoro # G3317424

product price:  $64.99
/ea

Key Features

Caster Sub-Type
Swivel
Caster Frame Material
Steel
Swivel Radius
4 3/4 in
Frame Finish
Zinc Plated
Wheel Width
2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P21S-C060R-16-VG1
Zoro #
G3317424
UPC #
-
Country of Origin
China

Dimensions

Swivel Radius
4 3/4 in
Wheel Width
2 in
Mounting Bolt Dia.
1/2 in
Wheel Dia.
6 in
Overall Height
7-1/2in
Mounting Plate Size
4-1/2 in x 6-1/4 in
Mounting Height
7 1/2 in
Mounting Plate Thickness
0.236 in

Details

Caster Sub-Type
Swivel
Caster Frame Material
Steel
Frame Finish
Zinc Plated
Thread Guards
No
Caster Brake Included
No
Caster Temp. Range Available
Yes
Application
Dollies, Floor Trucks, Material Handling Containers, Platform Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
Number of Wheels
1
Load Rating
1000 lb
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Features
Angle Iron Track Compatible
Core Color
Gray
Standards
ANSI ICWM, NSF Listed
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Wheel Color
Silver
Extended Lead
No
Item
Swivel Caster
Replacement Wheel
Mfr. No. P-C-060x020/050R-VG1
Non-Marking
No
Caster Plate Hole Pattern
A
Caster Brake Type
No Brake
Wheel/Tread Hardness Rating
Extra Hard
Swivel Raceway Type
Double Ball
Swivel Construction
Kingpin
Wheel/Tread Material
Cast Iron
Number of Mounting Holes
4
Swivel Lock Type
No Lock Included
Load Rating Range
Medium Duty
Includes Thread Guards
No
Wheel Bearing Type
Roller
Wheel Core Material
Cast Iron
Tread Shape
Standard
System of Measurement
Inch
Caster Mounting Type
Plate
ESD Conductive
No
Tread Color
Silver
Resistant To
High Chemical Resistance To Many Aggressive Substances
Tread
Standard
Accessories
Optional: P-DL21-16 (Directional Lock)
Series
P21 Series
Load Capacity
1200 lb
Load Capacity - Maximum
1,000 lb
Compatible With
P-C-060X020/050R-VG1
Wheel Hardness Rating
180 to 220 BHN
Operating Temperature - Minimum
-20 Degrees F
Operating Temperature - Maximum
250 Degrees F
Operating Temperature Range
Up To 800 Degrees F

Description

Swivel, Plate Caster, Load Rating 1000 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 2 in, Wheel/Tread Material Iron, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape V-Groove
