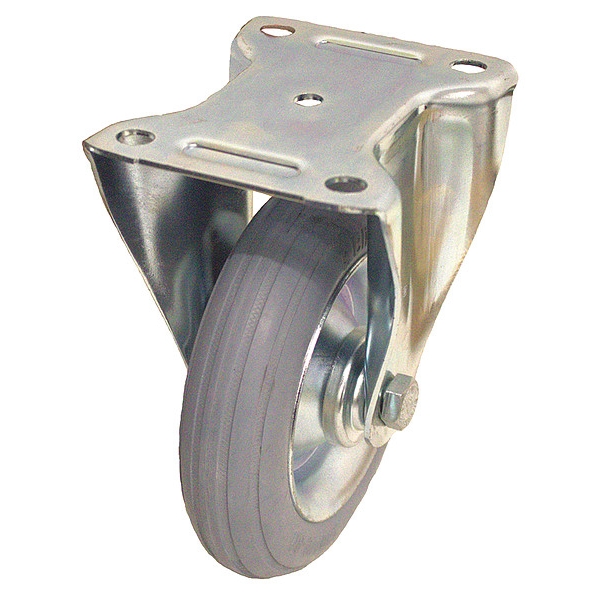

Solid Rubber Caster, 155 lb. Load, Rigid

  • Mfr # B-VW 162R-SG
  • Zoro # G6610550
product price:
$
74.15
/ea

Key Features

Wheel Dia.
6 5/16 in
Tread Color
Gray
Hub Color
Silver
Caster Plate Hole Pattern
C
Caster Brake Type
No Brake
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
B-VW 162R-SG
Zoro #
G6610550
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
6 5/16 in
Overall Height
7-21/32"
Tire Rim Dia.
4 in
Tire Thickness
1 3/16 in
Wheel Width
1 9/16 in
Hub Width
2-3/8"
Mounting Bolt Dia.
3/8 in
Mounting Plate Size
110 mm x 140 mm
Mounting Height
7 11/16 in
Inside Slot Spacing - Length
4.125 in
Mounting Plate Thickness
3/32 in
Outside Slot Spacing - Length
4.125 in
Overall Wheel Width
1 9/16 in
Inside Slot Spacing - Width
2.969 in
Mounting Plate Length
4 5/16 in
Outside Slot Spacing - Width
3.156 in
For Axle Dia.
12 mm

Details

Tread Color
Gray
Hub Color
Silver
Caster Plate Hole Pattern
C
Caster Brake Type
No Brake
Outside Bolt Hole Spacing
3-5/32 in x 4-9/64 in
Tread
Smooth
Inside Bolt Hole Spacing
2-15/16 in x 4-1/8 in
Hub Type
Centered
Number of Wheels
1
Hub Material
Steel
Caster Mounting Type
Plate
Non-Marking
Yes
Frame Finish
Zinc Plated
Item
Plate Caster
Load Rating
150 lb
Caster Sub-Type
Rigid
Caster Temp. Range Available
Yes
Caster Brake Included
No
Application
Retail, Industrial, Commercial
Core Color
Silver
Replacement Wheel
Mfr. No. VW 162/20R-SG
System of Measurement
Metric
Standards
RoHS, ICWM
Number of Mounting Holes
4
Wheel Bearing Type
Roller
Wheel/Tread Hardness Rating
Soft
Includes Thread Guards
No
Wheel/Tread Material
Rubber
Operating Temperature Range
-15 Degrees to 160 Degrees F
Swivel Raceway Type
Double Ball
Caster Frame Material
Steel
Load Rating Range
Light-Duty
Extended Lead
No
ESD Conductive
No
Resistant To
Chemical Resistance To Many Aggressive Substances, Except Oils
Tread Shape
Standard
Load Capacity
70 kg
Wheel Core Material
Pressed Steel
Series
B Series
Wheel Hardness Rating
50 Shore A
Load Capacity - Maximum
155 lb
Caster Features
Corrosion-Resistant
Wheel Bearing Material
Steel
Mounting Plate Shape
Rectangle
Mounting Hole Type
Slot
Wheel Core Type
Solid
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel

Description

Rigid, Plate Caster, Load Rating 150 lb, Wheel Dia. 6 5/16 in, Wheel Width 1 9/16 in, Wheel/Tread Material Rubber, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
