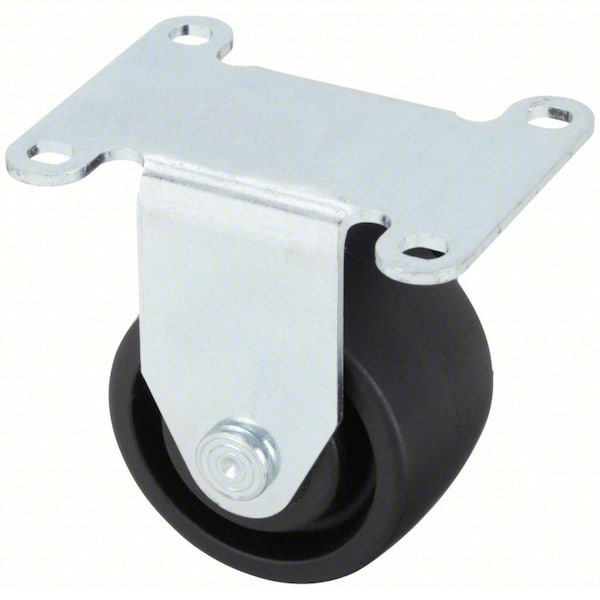

Zoro Select Plate Caster, 1000 lb. Load Rating, Rigid P10HR-NG030K-P-ZN - main

Plate Caster, 1000 lb. Load Rating, Rigid

  • Mfr # P10HR-NG030K-P-ZN

  • Zoro # G3317056

product price:  $15.69
/ea

Key Features

Load Rating
1000 lb
Wheel Width
1 5/8 in
Application
Business Machines, Electronic Equipment, Laboratory Equipment, Store Fixtures
Caster Sub-Type
Rigid
Standards
ANSI ICWM
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P10HR-NG030K-P-ZN
Zoro #
G3317056
UPC #
-
Country of Origin
China

Dimensions

Wheel Width
1 5/8 in
Swivel Radius
None- Rigid Caster
Overall Height
3-15/16in
Wheel Dia.
3 in
Mounting Bolt Dia.
5/16 in
Mounting Plate Size
3-1/4in x 3-1/4in
Mounting Height
4 1/16 in
Mounting Plate Thickness
1/8in
For Axle Dia.
1/2 in
Overall Wheel Width
1 5/8 in
Mounting Plate Length
3 1/8 in
Bolt Hole Spacing - Length
3.375 in
Bolt Hole Spacing - Width
2.375 in

Details

Load Rating
1000 lb
Application
Business Machines, Electronic Equipment, Laboratory Equipment, Store Fixtures
Caster Sub-Type
Rigid
Standards
ANSI ICWM
Extended Lead
No
Non-Marking
Yes
Core Color
Black
Wheel Color
Black
Inside Bolt Hole Spacing
2-3/8 in x 2-3/8 in
Features
Reduced Push/Pull Forces, Reduced Swivel Force
Caster Brake Included
No
Outside Bolt Hole Spacing
2-3/8 in x 3-3/8 in
Caster Frame Material
Steel
Thread Guards
No
Number of Wheels
1
Caster Temp. Range Available
Yes
Frame Finish
Zinc Plated
Item
Rigid Caster
Caster Plate Hole Pattern
D
Caster Brake Type
No Brake
Tread Shape
Standard
Number of Mounting Holes
4
Wheel Core Material
Nylon
Includes Thread Guards
No
Operating Temperature Range
-40 Degrees To 250 Degrees F
Swivel Lock Type
No Lock Included
Load Rating Range
Medium-Duty
Wheel/Tread Hardness Rating
Hard
Wheel Bearing Type
Ball
Wheel/Tread Material
Nylon
Wheel/Tread Color
Black
System of Measurement
Inch
Tread Color
Black
Tread
Standard
Load Capacity
1000 lb
Series
P10 Series
ESD Conductive
No
Resistant To
High Chemical Resistance To Many Aggressive Substances
Caster Mounting Type
Plate
Wheel Hardness Rating
85 shore D
Load Capacity - Maximum
1,000 lb
Mounting Plate Shape
Rectangle
Wheel Core Type
Solid
Mounting Hole Type
Hole
Wheel Bearing Material
Steel
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Caster Features
Corrosion-Resistant
Operating Temperature - Maximum
160 Degrees F
Operating Temperature - Minimum
-15 Degrees F

Description

Rigid, Plate Caster, Load Rating 1000 lb, Swivel Lock Type No Lock Included, Wheel Dia. 3 in, Wheel Width 1 5/8 in, Wheel/Tread Material Nylon, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
