Shop HAMILTON

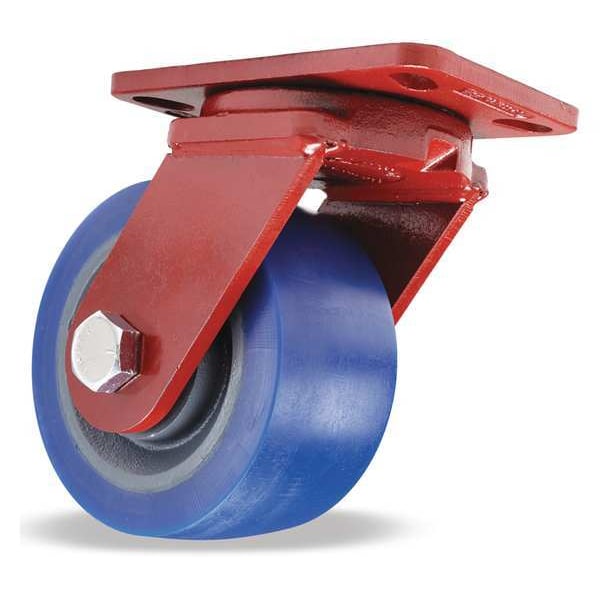

Plate Caster, Kingpinless Swivel, Poly, 6 in, 2450 lb.

  • Mfr # S-ZFFM-63EGB-4SL-FB

  • Zoro # G0383665

product price:
$
439.99
/ea
Free Shipping & Returns

Key Features

Wheel Dia.
6 in
Wheel Width
3 in
Features
Sealed Swivel Bearing
Caster Sub-Type
Swivel
Includes
Brake
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
S-ZFFM-63EGB-4SL-FB
Zoro #
G0383665
UPC #
-
Country of Origin
United States

Dimensions

Wheel Dia.
6 in
Wheel Width
3 in
Mounting Bolt Dia.
1/2 in
Overall Height
7-1/2"
Mounting Plate Size
4 1/2 in x 6 1/2 in
Mounting Height
7 1/2 in
Mounting Plate Length
6 1/2 in
Mounting Plate Width
4 1/2 in
Outside Slot Spacing - Length
5.25 in
Inside Slot Spacing - Length
4.938 in
Mounting Plate Thickness
3/8 in
For Axle Dia.
3/4 in
Outside Slot Spacing - Width
3.375 in
Inside Slot Spacing - Width
2.438 in
Overall Wheel Width
3 in

Details

Features
Sealed Swivel Bearing
Caster Sub-Type
Swivel
Includes
Brake
Caster Brake Included
Yes
Non-Marking
Yes
Extended Lead
No
Caster Temp. Range Available
Yes
Standards
ANSI ICWM
Load Rating
2400 lb
Core Color
Gray
Item
Plate Caster
Caster Plate Hole Pattern
A
Caster Frame Material
Steel
Number of Wheels
1
Frame Finish
Enamel
Thread Guards
No
Replacement Wheel
Mfr. No. W-630-EGB-3/4
Wheel Color
Blue
Caster Brake Type
Total Lock
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Wheel Bearing Type
Ball
Includes Thread Guards
No
Wheel Core Material
Polyurethane
Swivel Raceway Type
Single Ball
Swivel Construction
Kingpinless
Load Rating Range
1000 to 2999 lb
Number of Mounting Holes
4
Swivel Lock Type
4-Position Directional Lock
Wheel/Tread Hardness Rating
Soft
Tread Shape
Standard
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Blue
Wheel Type
Flat-Free
Compatible With
W-630-EGB-3/4
Load Capacity - Maximum
2,400 lb
Wheel Hardness Rating
82 Shore A
Brake Location
Right Side
Mounting Hole Type
Slot
Wheel Core Type
Solid
For Surface Type
Concrete
Mounting Plate Shape
Rectangle
Operating Temperature Range
-40 Degrees to 200 Degrees F
Operating Temperature - Maximum
200 Degrees F
Operating Temperature - Minimum
-40 Degrees F

Description

Swivel, Plate Caster, Load Rating 2400 lb, Swivel Lock Type 4-Position Directional Lock, Wheel Dia. 6 in, Wheel Width 3 in, Wheel/Tread Material Polyurethane, Wheel Core Material Polyurethane, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Total Lock, Tread Shape Standard
