  11. Plate Caster, 1100 lb. Ld Rating, Ball

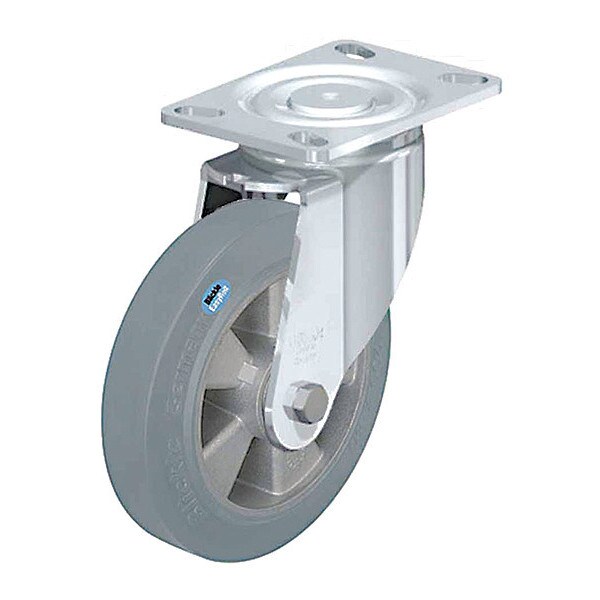

Zoro Select Plate Caster, 1100 lb. Ld Rating, Ball LH-ALEV 200K-16-SG - main

Plate Caster, 1100 lb. Ld Rating, Ball

  • Mfr # LH-ALEV 200K-16-SG

  • Zoro # G7279647

product price: $131.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
EasyRoll Elastic Solid Rubber
Caster Brake Type
No Brake
Wheel Dia.
8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LH-ALEV 200K-16-SG
Zoro #
G7279647
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
8 in
Wheel Width
2 in
Mounting Height
9 5/8 in
Mounting Plate Size
4-1/2 in x 6-1/4 in
Mounting Plate Thickness
0.236 in
Mounting Bolt Dia.
1/2 in
Overall Height
9-21/32in
Swivel Radius
6-3/4 in
Inside Slot Spacing - Width
2.438 in
Overall Wheel Width
2 in
For Axle Dia.
12 mm
Inside Slot Spacing - Length
4.938 in
Mounting Plate Length
4 1/2 in
Outside Slot Spacing - Length
5.25 in

Details

Item
Swivel Caster
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
EasyRoll Elastic Solid Rubber
Caster Brake Type
No Brake
Load Rating
1100 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Precision Ball
Wheel/Tread Color
Gray
Wheel Hardness Rating
65 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Silver
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Caster Plate Hole Pattern
A
Replacement Wheel
Mfr. No. ALEV 200/20K-SG
Features
Floor Protective, Noise Reduction
Frame Finish
Zinc Plated
Extended Lead
No
Standards
RoHS, ICWM
Thread Guards
No
Wheel Color
Gray
Caster Brake Included
No
Caster Temp. Range Available
Yes
Application
Retail, Industrial, Commercial
Wheel/Tread Hardness Rating
Soft
Wheel Core Material
Aluminum
Load Rating Range
Heavy Duty
Includes Thread Guards
No
Swivel Construction
Kingpin
Swivel Raceway Type
Double Ball
Swivel Lock Type
No Lock Included
Tread
Standard
Load Capacity
1100 lb
Series
LH Series
Resistant To
High Chemical Resistance To Many Aggressive Substances, Except Oils
Accessories
Optional: RI-05.16 (Directional Lock)
ESD Conductive
No
Tread Color
Gray
Compatible With
ALEV 200/20K-SG
Load Capacity - Maximum
660 lb
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Wheel Core Type
Solid
Wheel Bearing Material
Steel
Mounting Plate Shape
Rectangle
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel
Mounting Hole Type
Slot
Operating Temperature - Maximum
180 Degrees F
Operating Temperature - Minimum
-15 Degrees F
Operating Temperature Range
-15 Degrees To 175 Degrees F

Description

Swivel, Plate Caster, Load Rating 1100 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Rubber, Wheel Core Material Aluminum, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
