Zoro Select Plate Caster, Swivel, Phenolic, 3 7/8"H P10S-PH030R-14-SB-001 - main

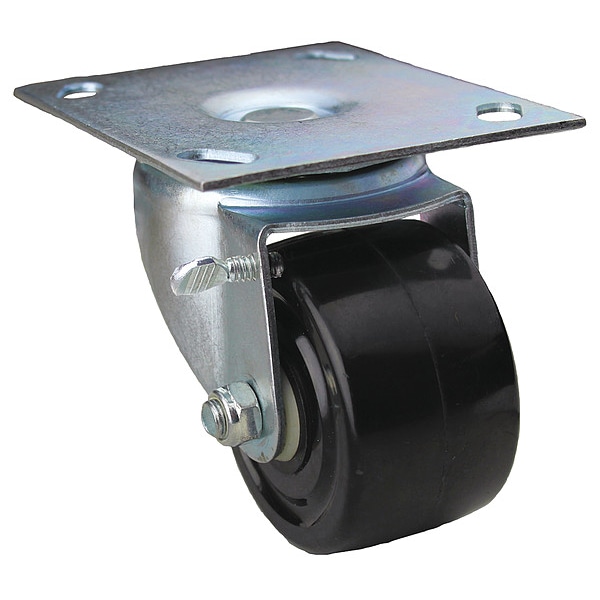

Plate Caster, Swivel, Phenolic, 3 7/8"H

  • Mfr # P10S-PH030R-14-SB-001

  • Zoro # G2052315

product price:  $23.69
/ea

Key Features

Core Color
Black
Overall Height
3-7/8in
Wheel Width
1 3/4 in
Hub Length
1 7/8 in
Mounting Bolt Dia.
5/16 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P10S-PH030R-14-SB-001
Zoro #
G2052315
UPC #
-
Country of Origin
China

Dimensions

Overall Height
3-7/8in
Wheel Width
1 3/4 in
Hub Length
1 7/8 in
Mounting Bolt Dia.
5/16 in
Overall Wheel Width
1 13/16 in
Swivel Radius
2 1/4 in
Wheel Dia.
3 in
Mounting Plate Thickness
3/16 in
Mounting Plate Size
3 3/4 in x 4 5/8 in
Mounting Height
3 7/8 in
For Axle Dia.
3/8 in

Details

Core Color
Black
Brake Location
Right Side
Application
Business Machines, Electronic Equipment, Laboratory Equipment, Store Fixtures
Swivel Lead
3/4 in
Standards
ANSI ICWM
NSF Listed
No
Frame Color
Silver
Item
Plate Caster
Wheel/Tread Hardness Rating
Hard
Swivel Bearing Seal Type
Open
ESD Conductive
No
Wheel/Tread Color
Black
Swivel Lock Type
No Lock Included
Operating Temperature Range
-20 Degrees to 250 Degrees F
Outside Bolt Hole Spacing
3 in x 3 in
Frame Construction
Stamped
Includes Spanner Bushing
Yes
Wheel Bearing Type
Ball
Swivel Raceway Type
Double Ball
Features
Low Rolling Resistance
Tread Shape
Standard
Caster Sub-Type
Swivel
With Toe Plate
No
For Surface Type
Concrete
Load Rating
500 lb
Frame Finish
Zinc Plated
Inside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Caster Mounting Type
Plate
Caster Brake Type
Side Brake
Number of Wheels
1
Caster Plate Hole Pattern
B
Wheel Core Material
Phenolic
Wheel/Tread Material
Phenolic
Series
Pegasus 10 Series
Wheel Type
Flat-Free
Non-Marking
Yes
Caster Frame Material
Steel
Number of Mounting Holes
4
Includes Mounting Fasteners
No
Swivel Construction
Kingpin
Load Rating Range
300 to 999 lb
Includes Thread Guards
No
Wheel Bearing Material
Steel
Wheel Core Type
Solid
System of Measurement
Inch
Load Capacity - Maximum
500 lb
Wheel Hardness Rating
Rockwell 102E

Description

Swivel, Plate Caster, Load Rating 500 lb, Swivel Lock Type No Lock Included, Wheel Dia. 3 in, Wheel Width 1 3/4 in, Wheel/Tread Material Phenolic, Wheel Core Material Phenolic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Side Brake, Tread Shape Standard
