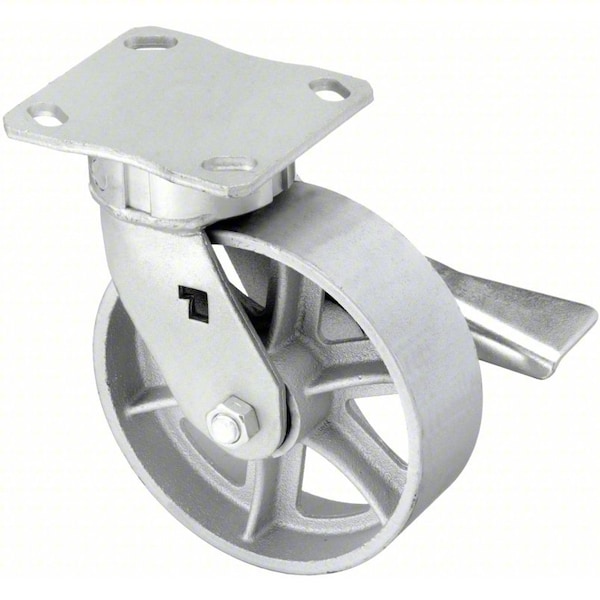

Plate Caster, 1200 lb. Ld Rating, Roller

  • Mfr # P25S-C060R-14-CB-DL

  • Zoro # G1199309

product price:
$
59.29
/ea

Key Features

Caster Frame Material
Steel
Wheel Color
Silver
Thread Guards
No
Caster Sub-Type
Swivel
Number of Wheels
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P25S-C060R-14-CB-DL
Zoro #
G1199309
UPC #
-
Country of Origin
China

Dimensions

Wheel Width
2 in
Mounting Bolt Dia.
3/8 in
Overall Height
7-1/2"
Swivel Radius
6 1/2 in
Wheel Dia.
6 in
Mounting Plate Size
4 in x 4-1/2 in
Mounting Height
7 1/2 in
For Axle Dia.
1/2 in
Outside Slot Spacing - Width
3 in
Outside Slot Spacing - Length
3.625 in
Overall Wheel Width
2 in
Inside Slot Spacing - Width
2.625 in
Mounting Plate Length
4 in
Mounting Plate Thickness
1/4 in
Inside Slot Spacing - Length
3 in

Details

Caster Frame Material
Steel
Wheel Color
Silver
Thread Guards
No
Caster Sub-Type
Swivel
Number of Wheels
1
Caster Brake Included
Yes
Standards
ANSI ICWM
Non-Marking
Yes
Item
Plate Caster
Extended Lead
No
Replacement Wheel
Mfr. No. P-C-060X020/050R
Caster Plate Hole Pattern
B
Inside Bolt Hole Spacing
3 in x 3 in
Frame Finish
Zinc Plated
Caster Temp. Range Available
Yes
Core Color
Silver
Caster Brake Type
Directional Lock, Side Brake
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Load Rating
1200 lb
Features
Push/Pull Force Reduction
Application
Dollies, Floor Trucks, Material Handling Containers, Platform Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
Includes
Pinch Type Brake, 4-Position Directional Lock
Load Rating Range
Medium Duty
Tread Shape
Standard
Wheel/Tread Hardness Rating
Extra Hard
Wheel Bearing Type
Roller
Swivel Construction
Kingpinless
Wheel/Tread Material
Iron
Wheel Core Material
Iron
Swivel Raceway Type
Single Ball
Swivel Lock Type
4-Position Directional Lock
Includes Thread Guards
No
Number of Mounting Holes
4
Wheel/Tread Color
Silver
System of Measurement
Inch
Tread
Standard
Tread Color
Silver
Load Capacity
1200 lb
Caster Mounting Type
Plate
ESD Conductive
No
Resistant To
High Chemical Resistance To Many Aggressive Substances
Series
P25 Series
Load Capacity - Maximum
1,200 lb
Compatible With
P-C-060X020/050R
Mounting Plate Shape
Rectangle
Wheel Core Type
Solid
Caster Features
Corrosion-Resistant
Wheel Hardness Rating
145 HB
For Surface Type
Grease, Metal Scrap, Oil, Rubber, Steel, Wood
Brake Location
Side
Mounting Hole Type
Slot
Wheel Bearing Material
Steel
Operating Temperature - Maximum
250 Degrees F
Operating Temperature - Minimum
-20 Degrees F
Operating Temperature Range
Up To 800 Degrees F

Description

Swivel, Plate Caster, Load Rating 1200 lb, Swivel Lock Type 4-Position Directional Lock, Wheel Dia. 6 in, Wheel Width 2 in, Wheel/Tread Material Iron, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Directional Lock, Side Brake, Tread Shape Standard
