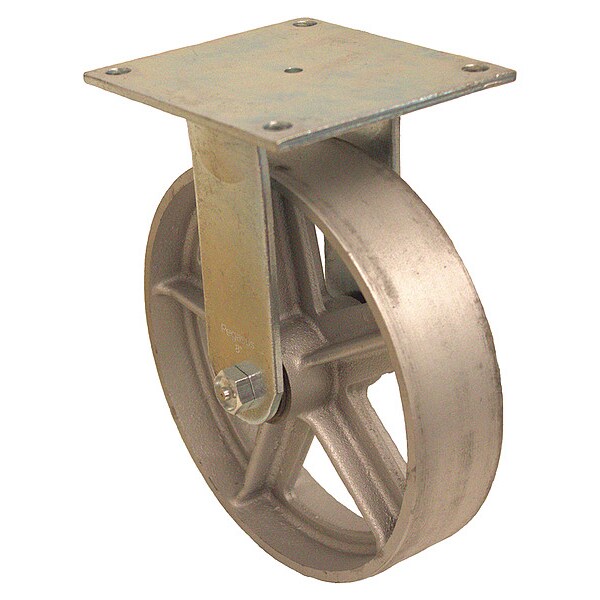

Zoro Select Plate Caster, 1200 lb. Load Rating P21R-C060R-15 - main

Plate Caster, 1200 lb. Load Rating

  • Mfr # P21R-C060R-15

  • Zoro # G5780338

product price:  $28.99
/ea

Key Features

Mounting Bolt Dia.
3/8 in
Outside Bolt Hole Spacing
4-1/8 in x 4-1/2 in
Frame Finish
Zinc Plated
Caster Frame Material
Steel
Replacement Wheel
Mfr. No. P-C-060x020/050R
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P21R-C060R-15
Zoro #
G5780338
UPC #
-
Country of Origin
China

Dimensions

Mounting Bolt Dia.
3/8 in
Wheel Dia.
6 in
Overall Height
7-1/2in
Swivel Radius
None- Rigid Caster
Wheel Width
2 in
Mounting Plate Size
5 in x 5-1/2 in
Mounting Height
7 1/2 in
For Axle Dia.
1/2 in
Overall Wheel Width
2 in
Bolt Hole Spacing - Length
4.125 in
Mounting Plate Length
5 in
Mounting Plate Thickness
0.236 in
Bolt Hole Spacing - Width
4.5 in

Details

Outside Bolt Hole Spacing
4-1/8 in x 4-1/2 in
Frame Finish
Zinc Plated
Caster Frame Material
Steel
Replacement Wheel
Mfr. No. P-C-060x020/050R
Load Rating
1200 lb
Standards
DIN EN 12532
Core Color
Gray
Extended Lead
No
Application
Food Service Racks and Cases, Hotel Equipment, Laundry Trucks, Office Equipment, Stock Carts, Store Fixtures, Utility Carts
Caster Sub-Type
Rigid
Caster Temp. Range Available
Yes
Thread Guards
No
Caster Plate Hole Pattern
D
Caster Brake Included
No
Inside Bolt Hole Spacing
4-1/8 in x 4-1/2 in
Item
Rigid Caster
Features
Push/Pull Force Reduction
Non-Marking
No
Number of Wheels
1
Wheel Color
Silver
Caster Brake Type
No Brake
Wheel/Tread Material
Cast Iron
Swivel Lock Type
No Lock Included
Load Rating Range
Medium Duty
Wheel Bearing Type
Roller
Wheel/Tread Hardness Rating
Extra Hard
Wheel Core Material
Cast Iron
Tread Shape
Standard
Includes Thread Guards
No
Number of Mounting Holes
4
Wheel/Tread Color
Silver
System of Measurement
Inch
ESD Conductive
No
Caster Mounting Type
Plate
Resistant To
High Chemical Resistance To Many Aggressive Substances
Load Capacity
1200 lb
Tread Color
Silver
Series
P21 Series
Tread
Standard
Load Capacity - Maximum
1,200 lb
Compatible With
P-C-060X020/050R
Caster Features
Corrosion-Resistant
Wheel Bearing Material
Steel
Mounting Hole Type
Hole
Mounting Plate Shape
Rectangle
Wheel Core Type
Solid
Wheel Hardness Rating
180-220 BHN
For Surface Type
Grease, Metal Scrap, Oil, Rubber, Steel, Wood
Operating Temperature Range
Up To 800 Degrees F
Operating Temperature - Minimum
-15 Degrees F
Operating Temperature - Maximum
250 Degrees F

Description

Rigid, Plate Caster, Load Rating 1200 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 2 in, Wheel/Tread Material Iron, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
