  6. Plate Caster, 125 lb. Load, Black Wheel
Zoro Select Plate Caster, 125 lb. Load, Black Wheel P7S-SRP020K-P - main

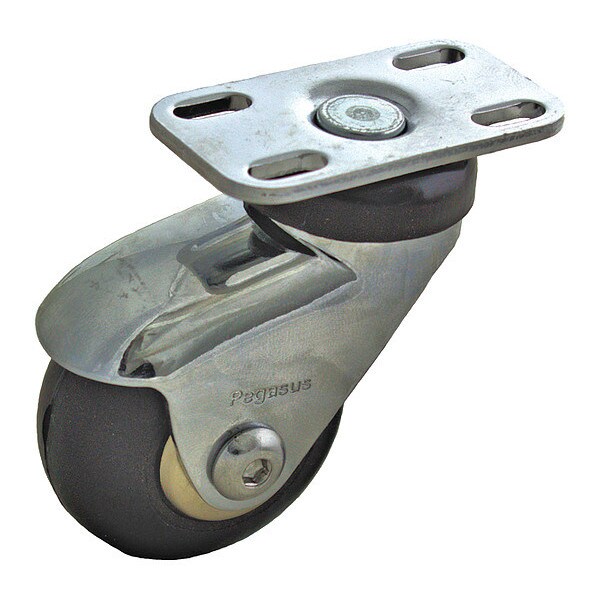

Plate Caster, 125 lb. Load, Black Wheel

  • Mfr # P7S-SRP020K-P

  • Zoro # G5580607

product price:  $8.69
/ea

Key Features

Number of Wheels
1
Caster Frame Material
Steel
Features
Noise Reduction
Frame Finish
Zinc Chromate
Standards
ANSI ICWM
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
P7S-SRP020K-P
Zoro #
G5580607
UPC #
-
Country of Origin
China

Dimensions

Swivel Radius
1-15/16 in
Mounting Bolt Dia.
5/16 in
Overall Height
3in
Wheel Width
1 in
Wheel Dia.
2 in
Mounting Height
2 15/16 in
Mounting Plate Size
1-1/4in x 2-3/8in
Overall Wheel Width
1 in
Outside Slot Spacing - Length
1.875 in
Inside Slot Spacing - Length
1.25 in
Inside Slot Spacing - Width
0.813 in
Mounting Plate Thickness
7/64in
For Axle Dia.
1/4 in
Outside Slot Spacing - Width
0.813 in
Mounting Plate Length
1 1/4 in

Details

Number of Wheels
1
Caster Frame Material
Steel
Features
Noise Reduction
Frame Finish
Zinc Chromate
Standards
ANSI ICWM
Non-Marking
Yes
Wheel Color
Black
Load Rating
125 lb
Thread Guards
Yes
Application
IV Stands, Laboratory Equipment, Medical Equipment, Mobile Computer Stands
Caster Brake Included
No
Includes
Thread Guards
Caster Brake Type
No Brake
Caster Plate Hole Pattern
D
Item
Swivel Caster
Core Color
Black
Caster Temp. Range Available
Yes
Caster Sub-Type
Swivel
Extended Lead
No
Inside Bolt Hole Spacing
13/16 x 1-1/4 in
Outside Bolt Hole Spacing
13/16 in x 1-7/8 in
Swivel Raceway Type
Double Ball
Load Rating Range
Light-Duty
Wheel Bearing Type
Ball
Swivel Lock Type
No Lock Included
Wheel Core Material
Polypropylene
Number of Mounting Holes
4
Wheel/Tread Hardness Rating
Soft
Tread Shape
Standard
Swivel Construction
Kingpin
Includes Thread Guards
Yes
Wheel/Tread Material
Neoprene
Wheel/Tread Color
Black
System of Measurement
Inch
Load Capacity
125 lb
Tread Color
Black
Tread
Standard
Series
P7 Series
Resistant To
High Chemical Resistance To Many Aggressive Substances
Caster Mounting Type
Plate
ESD Conductive
No
Wheel Hardness Rating
65 Shore A
Load Capacity - Maximum
125 lb
Mounting Hole Type
Slot
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Wheel Core Type
Solid
Mounting Plate Shape
Rectangle
Wheel Bearing Material
Steel
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Operating Temperature Range
-20 Degrees to 180 Degrees F
Operating Temperature - Minimum
-20 Degrees F
Operating Temperature - Maximum
180 Degrees F

Description

Swivel, Plate Caster, Load Rating 125 lb, Swivel Lock Type No Lock Included, Wheel Dia. 2 in, Wheel Width 1 in, Wheel/Tread Material Rubber, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
