Zoro Select Plate Caster, 1250 lb. Ld Rating, Ball P25S-UY080KP-14-WK-DL-001 - main

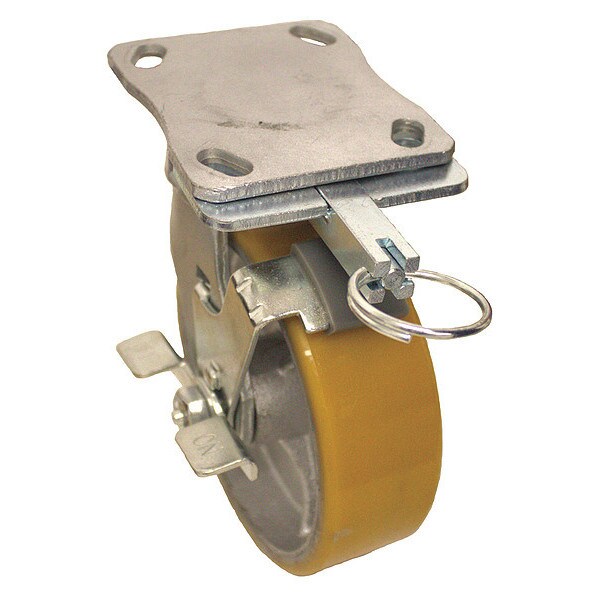

Plate Caster, 1250 lb. Ld Rating, Ball

  • Mfr # P25S-UY080KP-14-WK-DL-001

  • Zoro # G7279111

product price:  $101.99
/ea
Free Shipping & Returns

Key Features

Wheel Color
Yellow
Load Rating
1250 lb
Caster Sub-Type
Swivel
Extended Lead
No
Caster Brake Included
Yes
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
P25S-UY080KP-14-WK-DL-001
Zoro #
G7279111
UPC #
-
Country of Origin
China

Dimensions

Mounting Bolt Dia.
3/8 in
Wheel Dia.
8 in
Overall Height
9-1/2in
Wheel Width
2 in
Swivel Radius
8 3/8 in
Mounting Height
9 1/2 in
Mounting Plate Size
4 in x 4-1/2 in
Inside Slot Spacing - Width
2.625 in
Outside Slot Spacing - Width
3 in
For Axle Dia.
1/2 in
Mounting Plate Thickness
0.236 in
Inside Slot Spacing - Length
3 in
Outside Slot Spacing - Length
3.625 in
Mounting Plate Length
4 in
Overall Wheel Width
2 in

Details

Wheel Color
Yellow
Load Rating
1250 lb
Caster Sub-Type
Swivel
Extended Lead
No
Caster Brake Included
Yes
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Non-Marking
Yes
Caster Temp. Range Available
Yes
Features
Floor Protective
Caster Frame Material
Steel
Inside Bolt Hole Spacing
3 in x 3 in
Frame Finish
Zinc Plated
Replacement Wheel
Mfr. No. P-UY-080x020/050KP
Caster Plate Hole Pattern
B
Core Color
Gray
Thread Guards
No
Application
Dollies, Dough Troughs, Platform Trucks, Scrap Metal Carriers, Tooling Fixtures, Tow Lines, Utility Carts
Item
Kingpinless Swivel Caster With Brake And Directional-Lock
Caster Brake Type
Directional Lock, No Brake
Standards
ANSI ICWM
Number of Wheels
1
Includes
Strap Type Brake, 4-Position Directional Lock
Swivel Lock Type
4-Position Directional Lock
Wheel/Tread Hardness Rating
Firm
Tread Shape
Standard
Swivel Raceway Type
Single Ball
Includes Thread Guards
No
Wheel Core Material
Cast Iron
Number of Mounting Holes
4
Swivel Construction
Kingpinless
Wheel Bearing Type
Precision Ball
Load Rating Range
Medium Duty
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Red
System of Measurement
Inch
Series
P25 Series
ESD Conductive
No
Tread
Standard
Caster Mounting Type
Plate
Load Capacity
1500 lb
Resistant To
High Chemical Resistance To Many Aggressive Substances
Tread Color
Yellow
Compatible With
P-UY-080X020/050KP
Load Capacity - Maximum
1,500 lb
Wheel Hardness Rating
92 Shore A
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Mounting Hole Type
Slot
Wheel Bearing Material
Steel
Wheel Core Type
Solid
Brake Location
Rear
Mounting Plate Shape
Rectangle
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Operating Temperature - Maximum
180 Degrees F
Operating Temperature Range
-15 Degrees To 160 Degrees F
Operating Temperature - Minimum
-20 Degrees F

Description

Swivel, Plate Caster, Load Rating 1250 lb, Swivel Lock Type 4-Position Directional Lock, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Directional Lock, No Brake, Tread Shape Standard
