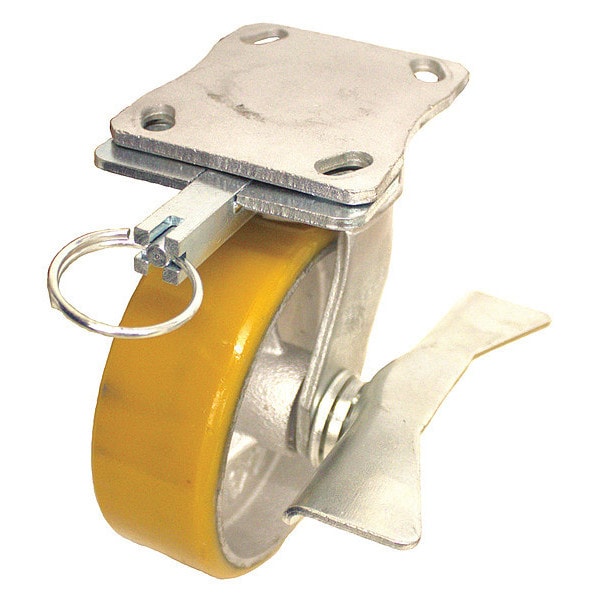

Zoro Select Plate Caster, 1250 lb. Ld Rating, Ball P25S-UY080KP-16-WB-DL-001 - main

Plate Caster, 1250 lb. Ld Rating, Ball

  • Mfr # P25S-UY080KP-16-WB-DL-001

  • Zoro # G3317467

product price: $83.69
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Polyurethane
Caster Brake Type
Directional Lock, Side Brake
Wheel Dia.
8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P25S-UY080KP-16-WB-DL-001
Zoro #
G3317467
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
8 in
Wheel Width
2 in
Mounting Height
9 1/2 in
Mounting Plate Size
4-1/2 in x 6-1/4 in
Mounting Plate Thickness
0.236 in
Mounting Bolt Dia.
1/2 in
Overall Height
9-1/2in
Swivel Radius
6-1/4 in
Inside Slot Spacing - Width
2.438 in
Mounting Plate Length
4 1/2 in
For Axle Dia.
1/2 in
Inside Slot Spacing - Length
4.938 in
Overall Wheel Width
2 in
Outside Slot Spacing - Length
5.25 in

Details

Item
Kingpinless Swivel Caster With Brake And Directional-Lock
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Polyurethane
Caster Brake Type
Directional Lock, Side Brake
Load Rating
1250 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Precision Ball
Wheel/Tread Color
Red
Wheel Hardness Rating
92 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Caster Plate Hole Pattern
A
Thread Guards
No
Wheel Color
Yellow
Caster Temp. Range Available
Yes
Extended Lead
No
Standards
RoHS, ICWM
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Caster Brake Included
Yes
Features
Floor Protective
Frame Finish
Zinc Plated
Replacement Wheel
Mfr. No. P-UY-080x020/050KP
Includes
Strap Type Brake, 4-Position Directional Lock
Swivel Raceway Type
Kingpinless Single Ball
Swivel Lock Type
4-Position Directional Lock
Wheel/Tread Hardness Rating
Firm
Swivel Construction
Kingpinless
Load Rating Range
Medium Duty
Wheel Core Material
Cast Iron
Includes Thread Guards
No
Tread
Standard
Load Capacity
1500 lb
ESD Conductive
No
Resistant To
High Chemical Resistance To Many Aggressive Substances
Series
P25 Series
Tread Color
Yellow
Compatible With
P-UY-080X020/050KP
Load Capacity - Maximum
1,500 lb
Wheel Bearing Material
Steel
Mounting Plate Shape
Rectangle
Wheel Core Type
Solid
Mounting Hole Type
Slot
Brake Location
Side
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Operating Temperature - Minimum
-20 Degrees F
Operating Temperature - Maximum
180 Degrees F
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Swivel, Plate Caster, Load Rating 1250 lb, Swivel Lock Type 4-Position Directional Lock, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Directional Lock, Side Brake, Tread Shape Standard
