  6. Plate Caster, 3-1/2" Wheel Dia., 275 lb.

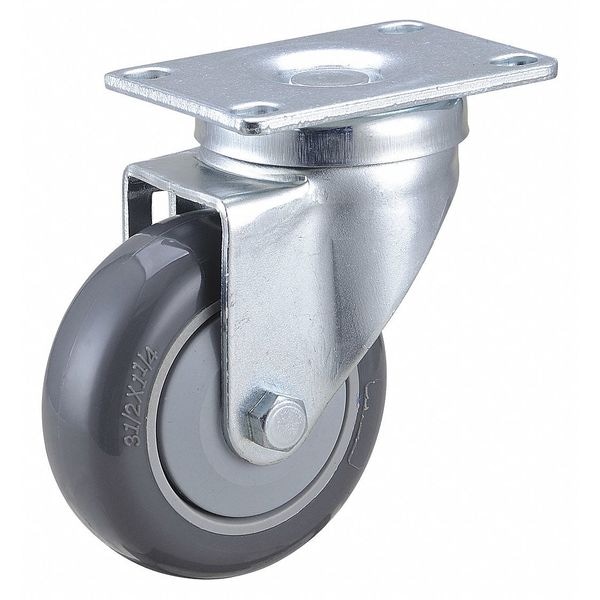

Zoro Select Plate Caster, 3-1/2" Wheel Dia., 275 lb. 435X78 - main

Plate Caster, 3-1/2" Wheel Dia., 275 lb.

  • Mfr # 435X78

  • Zoro # G3918719

product price:  $9.15
/ea

Key Features

Caster Frame Material
Steel
Stem Dia.
No Stem
Core Color
Gray
Caster Sub-Type
Swivel
Caster Plate Hole Pattern
C
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
435X78
Zoro #
G3918719
UPC #
-
Country of Origin
China

Dimensions

Stem Dia.
No Stem
Overall Height
4-11/16in
Wheel Dia.
3 1/2 in
Mounting Bolt Dia.
5/16 in
Wheel Width
1 1/4 in
Mounting Height
4 11/16 in
Mounting Plate Size
2 1/2 in x 3 5/8 in
Mounting Plate Thickness
5/32in

Details

Caster Frame Material
Steel
Core Color
Gray
Caster Sub-Type
Swivel
Caster Plate Hole Pattern
C
Thread Guards
Yes
Load Rating
275 lb
Frame Finish
Zinc Plated
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Item
Plate Caster
Caster Temp. Range Available
No
Extended Lead
No
Application
General Purpose
Caster Stem Type
No Stem/Plate Included
Wheel Color
Gray
Number of Wheels
1
Non-Marking
Yes
Caster Brake Included
No
Standards
ANSI, ANSI ICWM
Caster Brake Type
No Brake
Tread Shape
Standard
Number of Mounting Holes
4
Includes Thread Guards
Yes
Wheel Bearing Type
Ball
Swivel Lock Type
No Lock Included
Load Rating Range
0 to 299 lb
Swivel Raceway Type
Double Ball
Wheel/Tread Hardness Rating
Firm
Wheel Core Material
Polyolefin
Swivel Construction
Kingpin
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Gray
Load Capacity - Maximum
275 lb
Wheel Hardness Rating
95 Shore A
Operating Temperature Range
-40 Degrees to 175 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
175 Degrees F

Description

Swivel, Plate Caster, Load Rating 275 lb, Swivel Lock Type No Lock Included, Wheel Dia. 3 1/2 in, Wheel Width 1 1/4 in, Wheel/Tread Material Polyurethane, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
