  11. Plate Caster, 1250 lb. Ld Rating, Gy Wheel
Zoro Select Plate Caster, 1250 lb. Ld Rating, Gy Wheel P21R-C080R-15 - main

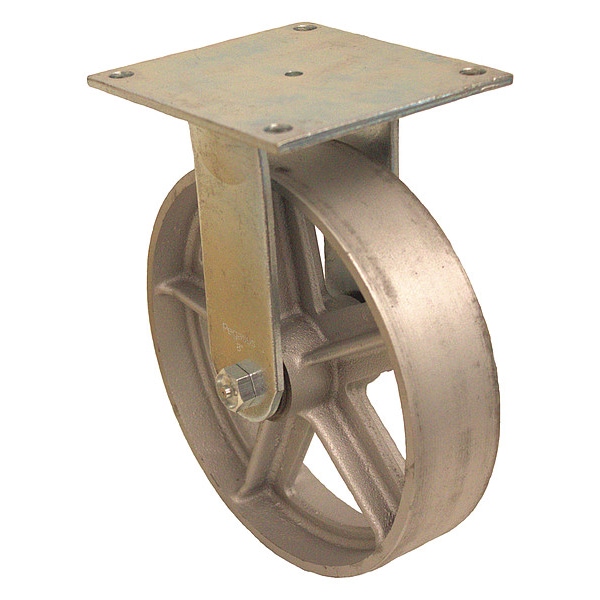

Plate Caster, 1250 lb. Ld Rating, Gy Wheel

  • Mfr # P21R-C080R-15

  • Zoro # G1610960

product price: $22.89
/ea

Key Features

Caster Sub-Type
Rigid
System of Measurement
Inch
Wheel/Tread Material
Cast Iron
Caster Brake Type
No Brake
Wheel Dia.
8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P21R-C080R-15
Zoro #
G1610960
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
8 in
Wheel Width
2 in
Mounting Height
9 1/2 in
Mounting Plate Size
5 in x 5-1/2 in
Mounting Plate Thickness
0.236 in
Mounting Bolt Dia.
3/8 in
Overall Height
9-1/2in
Swivel Radius
None- Rigid Caster
For Axle Dia.
1/2 in
Bolt Hole Spacing - Width
4.5 in
Bolt Hole Spacing - Length
4.125 in
Overall Wheel Width
2 in
Mounting Plate Length
5 in

Details

Item
Rigid Caster
Caster Sub-Type
Rigid
System of Measurement
Inch
Wheel/Tread Material
Cast Iron
Caster Brake Type
No Brake
Load Rating
1250 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Roller
Wheel/Tread Color
Gray
Wheel Hardness Rating
145 BHN
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
No
Number of Wheels
1
Outside Bolt Hole Spacing
4-1/8 in x 4-1/2 in
Inside Bolt Hole Spacing
4-1/8 in x 4-1/2 in
Caster Plate Hole Pattern
D
Wheel Color
Gray
Includes
Complete Caster
Frame Finish
Zinc Plated
Application
Retail, Industrial, Commercial
Features
Push/Pull Force Reduction
Replacement Wheel
Mfr. No. P-C-080x020/050R
Standards
RoHS, ICWM, NSF
Extended Lead
No
Caster Temp. Range Available
Yes
Caster Brake Included
No
Thread Guards
No
Operating Temperature Range
-40 Degrees to 180 Degrees F
Load Rating Range
Medium-Duty
Swivel Lock Type
No Lock Included
Wheel Core Material
Cast Iron
Wheel/Tread Hardness Rating
Extra Hard
Includes Thread Guards
No
Series
P21 Series
Resistant To
High Chemical Resistance To Many Aggressive Substances
Tread Color
Silver
Load Capacity
1250 lb
Tread
Standard
ESD Conductive
No
Load Capacity - Maximum
1,250 lb
Caster Features
Corrosion-Resistant
Mounting Hole Type
Hole
Wheel Core Type
Spoke
Wheel Bearing Material
Steel
For Surface Type
Grease, Metal Scrap, Oil, Rubber, Steel, Wood
Mounting Plate Shape
Rectangle

Description

Rigid, Plate Caster, Load Rating 1250 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Iron, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
