Shop All Plate Casters
Zoro Select

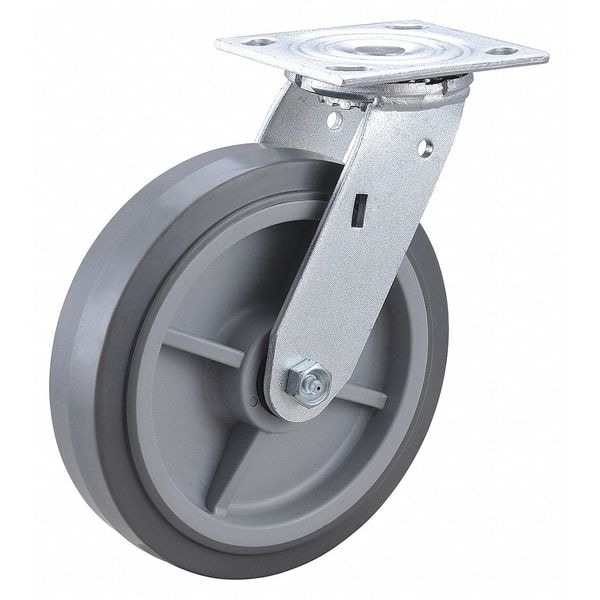

Plate Caster, 600 lb. Load Rating, Swivel

product price: $19.45
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Caster Brake Included No
  • Caster Load Rating Range Light-Medium Duty
  • Caster Sub-Type Swivel
  • Caster Wheel Shape Standard
  • Caster Wheel/Tread Material Thermoplastic Rubber
See all product information

Product Information

Dimensions

Overall Height 9-1/2"
Wheel Dia. 8 in
Wheel Width 2 in
Stem Dia. No Stem
Plate Size 4" x 4-1/2"
Swivel Radius 6 1/2 in
Caster Plate Size 4" x 4-1/2"
Mounting Bolt Dia. 3/8 in
Mounting Height 9 1/2 in
Mounting Plate Size 4 in x 4 1/2 in

Details

Caster Brake Included No
Caster Load Rating Range Light-Medium Duty
Caster Sub-Type Swivel
Caster Wheel Shape Standard
Caster Wheel/Tread Material Thermoplastic Rubber
Load Rating 600 lb
Number of Wheels 1
Caster Stem Type No Stem/Plate Included
Caster Swivel Lock Type No Lock Included
Caster Max. Temp. 175 Degrees F
Wheel Color Gray
Caster Plate Thickness 7/32"
Caster Temp. Range Available Yes
Caster Frame Material Steel
Inside Bolt Hole Spacing 3 in x 3 in
Outside Bolt Hole Spacing 2-5/8 in x 3-5/8 in
Thread Guards No
Caster Product Group Swivel Caster
Core Color Gray
Extended Lead No
Application General Purpose
Durometer 75 Shore A
Caster Wheel Bearings Roller
Item Standard Plate Caster
Caster Plate Hole Pattern B
Plate Thickness 7/32"
Non-Marking Yes
Caster Min. Temp. -40 Degrees F
Caster Temp. Range -40 Degrees to 175 Degrees F
Frame Material Steel
Caster Raceway Double Ball
Caster Core Material Polyolefin
Plate Caster Bolt Hole Pattern B
Replacement Wheel 1ULJ8
Frame Finish Zinc Plated
Caster Brake Type No Brake Included
Tread Shape Standard
Wheel/Tread Hardness 75 Shore A
Wheel Bearing Type Roller
Wheel Core Material Plastic
Swivel Construction Kingpin
Wheel/Tread Hardness Rating Soft
Swivel Raceway Type Double Ball
Swivel Lock Type No Lock Included
Mounting Plate Bolt Hole Pattern B
Number of Mounting Holes 4
Load Rating Range 300 to 999 lb
Includes Thread Guards No
Wheel/Tread Material Thermoplastic Rubber
Wheel/Tread Color Gray

Description

Swivel, Standard Plate Caster, Load Rating 600 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Thermoplastic Rubber, Wheel Core Material Plastic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake Included, Tread Shape Standard
