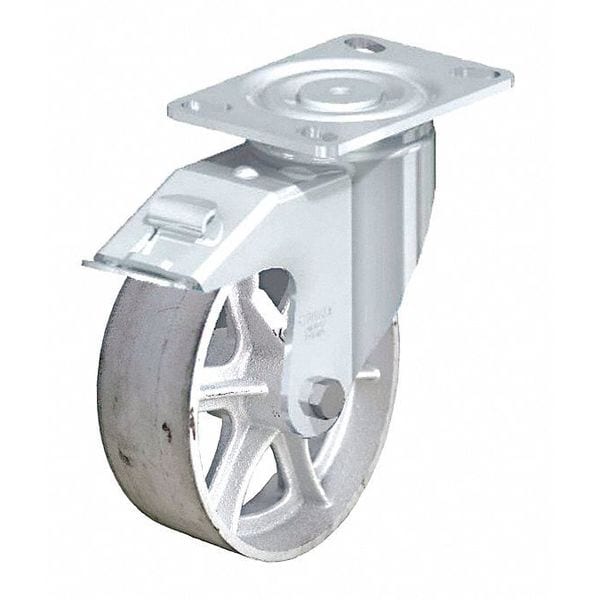

Zoro Select Plate Caster, 1250 lb. Load, Silver Wheel LH-C080R-16-FI - main

Plate Caster, 1250 lb. Load, Silver Wheel

  • Mfr # LH-C080R-16-FI

  • Zoro # G5586003

product price:  $153.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Core Color
Gray
Caster Brake Included
Yes
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
LH-C080R-16-FI
Zoro #
G5586003
UPC #
-
Country of Origin
Germany

Dimensions

Mounting Bolt Dia.
1/2 in
Swivel Radius
6 7/16 in
Wheel Width
2 in
Overall Height
9-5/8in
Wheel Dia.
8 in
Mounting Plate Size
4-1/2in x 6-1/4in
Mounting Height
9 11/16 in
Outside Slot Spacing - Length
5.25 in
Mounting Plate Length
4 1/2 in
For Axle Dia.
1/2 in
Inside Slot Spacing - Width
2.438 in
Mounting Plate Thickness
1/4in
Overall Wheel Width
2 in
Inside Slot Spacing - Length
4.938 in

Details

Caster Sub-Type
Swivel
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Core Color
Gray
Caster Brake Included
Yes
Item
Swivel Caster with Total Lock
Caster Frame Material
Steel
Caster Brake Type
Total Lock
Caster Plate Hole Pattern
A
Number of Wheels
1
Wheel Color
Silver
Thread Guards
No
Includes
Complete Caster with Total Lock
Load Rating
1250 lb
Frame Finish
Zinc Plated
Extended Lead
No
Non-Marking
No
Features
Push/Pull Force Reduction
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Caster Temp. Range Available
Yes
Replacement Wheel
Mfr. No. P-C-080X020/050R
Standards
DIN EN, ANSI ICWM, ISO 9001
Swivel Construction
Kingpin
Wheel/Tread Material
Cast Iron
Number of Mounting Holes
4
Wheel/Tread Hardness Rating
Extra Hard
Tread Shape
Standard
Swivel Lock Type
No Lock Included
Wheel Bearing Type
Roller
Load Rating Range
Medium-Duty
Includes Thread Guards
No
Wheel Core Material
Cast Iron
Swivel Raceway Type
Double Ball
Wheel/Tread Color
Silver
System of Measurement
Inch
Accessories
Optional: RI-05.16 (Directional Lock)
Resistant To
High Chemical Resistance To Many Aggressive Substances
Series
LH Series
Load Capacity
1400 lb
Tread Color
Silver
ESD Conductive
No
Tread
Standard
Caster Mounting Type
Plate
Compatible With
P-C-080X020/050R
Load Capacity - Maximum
1,400 lb
Wheel Bearing Material
Steel
Caster Features
Corrosion-Resistant
Mounting Plate Shape
Rectangle
Brake Location
Rear
For Surface Type
Grease, Metal Scrap, Oil, Rubber, Steel, Wood
Mounting Hole Type
Slot
Wheel Hardness Rating
220 BHN
Wheel Core Type
Solid
Operating Temperature Range
Up to 800 Degrees F
Operating Temperature - Maximum
800 Degrees F

Description

Swivel, Plate Caster, Load Rating 1250 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Iron, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Total Lock, Tread Shape Standard
