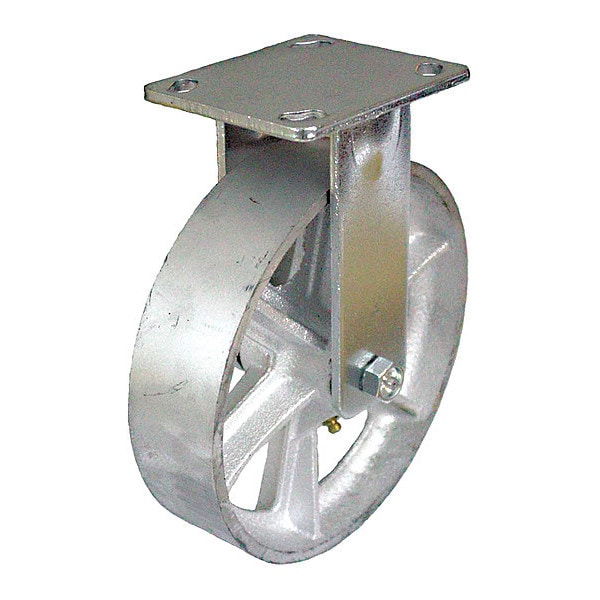

Zoro Select Plate Caster, 1250 lb. Load, Silver Wheel P21R-C080R-16 - main

Plate Caster, 1250 lb. Load, Silver Wheel

  • Mfr # P21R-C080R-16

  • Zoro # G5616307

product price:  $43.75
/ea

Key Features

Frame Finish
Zinc Plated
Caster Sub-Type
Rigid
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Replacement Wheel
Mfr. No. P-C-080x020/050R
Includes
Complete Caster
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
P21R-C080R-16
Zoro #
G5616307
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
8 in
Mounting Bolt Dia.
1/2 in
Overall Height
9-1/2in
Wheel Width
2 in
Mounting Plate Size
4-1/2 in x 6-1/4 in
Mounting Height
9 1/2 in
Overall Wheel Width
2 in
Bolt Hole Spacing - Length
2.438 in
Outside Slot Spacing - Length
5.25 in
Mounting Plate Thickness
0.236 in
Inside Slot Spacing - Width
2.438 in
For Axle Dia.
1/2 in
Outside Slot Spacing - Width
3.375 in
Mounting Plate Length
6 1/4 in
Mounting Plate Width
4 1/2 in
Inside Slot Spacing - Length
4.938 in

Details

Frame Finish
Zinc Plated
Caster Sub-Type
Rigid
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Replacement Wheel
Mfr. No. P-C-080x020/050R
Item
Rigid Caster
Includes
Complete Caster
Load Rating
1250 lb
Caster Brake Type
No Brake
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Standards
ANSI ICWM
Extended Lead
No
Features
Push/Pull Force Reduction
Core Color
Gray
Application
Dollies, Floor Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
Thread Guards
No
Caster Frame Material
Steel
Caster Plate Hole Pattern
A
Caster Temp. Range Available
Yes
Wheel Color
Silver
Non-Marking
No
Caster Brake Included
No
Number of Wheels
1
Includes Thread Guards
No
Wheel/Tread Hardness Rating
Extra Hard
Wheel Bearing Type
Roller
Number of Mounting Holes
4
Load Rating Range
Medium Duty
Wheel/Tread Material
Cast Iron
Swivel Lock Type
No Lock Included
Wheel Core Material
Cast Iron
Tread Shape
Standard
Wheel/Tread Color
Silver
System of Measurement
Inch
Resistant To
High Chemical Resistance To Many Aggressive Substances
Load Capacity
1250 lb
ESD Conductive
No
Tread
Standard
Tread Color
Silver
Caster Mounting Type
Plate
Series
P21 Series
Load Capacity - Maximum
1,250 lb
Compatible With
P-C-080X020/050R
Mounting Hole Type
Slot
Caster Features
Corrosion-Resistant
For Surface Type
Grease, Metal Scrap, Oil, Rubber, Steel, Wood
Mounting Plate Shape
Rectangle
Wheel Core Type
Spoke
Wheel Hardness Rating
220 BHN
Wheel Bearing Material
Steel
Operating Temperature - Maximum
800 Degrees F
Operating Temperature Range
Up To 800 Degrees F

Description

Rigid, Plate Caster, Load Rating 1250 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Iron, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
