  11. Plate Caster, 1250 lb. Load, Silver Wheel
Zoro Select Plate Caster, 1250 lb. Load, Silver Wheel P21R-DSPK 125K-14 - main

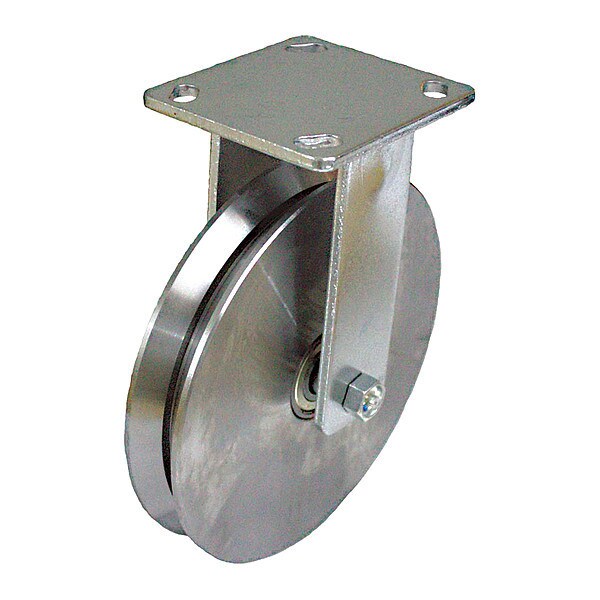

Plate Caster, 1250 lb. Load, Silver Wheel

  • Mfr # P21R-DSPK 125K-14

  • Zoro # G5642758

product price: $155.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Rigid
System of Measurement
Inch
Wheel/Tread Material
Solid Steel
Caster Brake Type
No Brake
Wheel Dia.
5 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P21R-DSPK 125K-14
Zoro #
G5642758
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
5 in
Wheel Width
2 in
Mounting Height
6 7/16 in
Mounting Plate Size
4 in x 4-1/2 in
Mounting Plate Thickness
0.236 in
Mounting Bolt Dia.
3/8 in
Swivel Radius
None- Rigid Caster
Overall Height
6-1/2in
Recommended Track Size
1-1/2 in x 1-1/2 in; 1/4 in x 1/4 in
Overall Wheel Width
2 in
Outside Slot Spacing - Width
3 in
For Axle Dia.
1/2 in
Inside Slot Spacing - Length
3 in
Mounting Plate Width
4 in
Inside Slot Spacing - Width
2.625 in
Mounting Plate Length
4 1/2 in
Outside Slot Spacing - Length
3.625 in

Details

Item
Rigid Caster
Caster Sub-Type
Rigid
System of Measurement
Inch
Wheel/Tread Material
Solid Steel
Caster Brake Type
No Brake
Load Rating
1250 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Precision Ball
Wheel Hardness Rating
190-230 BHN
Number of Mounting Holes
4
Tread Shape
V-Groove
Caster Frame Material
Steel
Core Color
Silver
Non-Marking
No
Number of Wheels
1
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Inside Bolt Hole Spacing
3 in x 3 in
Caster Plate Hole Pattern
B
Caster Temp. Range Available
Yes
Application
Platform Trucks, Warehouse Trucks, Material Handling Containers, Dollies, Waste Disposal Trucks, Floor Trucks, Shop Carts
Frame Finish
Zinc Plated
Wheel Color
Silver
Replacement Wheel
Mfr. No. DSPK 125K
Extended Lead
No
Features
Easy Rolling
Thread Guards
No
Caster Brake Included
No
Standards
RoHS, ICWM, NSF
Includes
Complete Caster
Clearance on 1-1/4" Track
3/8 in
Wheel/Tread Hardness Rating
Extra Hard
Load Rating Range
Medium Duty
Includes Thread Guards
No
Swivel Lock Type
No Lock Included
Wheel Core Material
Steel
Clearance on 1-1/2" Track
9/16 in
Resistant To
High Chemical Resistance To Many Aggressive Substances
Load Capacity
1250 lb
Tread
V-Groove
Series
P21 Series
Tread Color
Silver
ESD Conductive
No
Compatible With
DSPK 125K
Load Capacity - Maximum
1,250 lb
Mounting Hole Type
Slot
Wheel Bearing Material
Steel
Caster Features
Corrosion-Resistant
Wheel Core Type
Solid
Mounting Plate Shape
Rectangle
For Surface Type
Grease, Metal Scrap, Oil, Rubber, Steel, Wood
Operating Temperature - Maximum
250 Degrees F
Operating Temperature - Minimum
-20 Degrees F
Operating Temperature Range
-15 Degrees To 250 Degrees F

Description

Rigid, Plate Caster, Load Rating 1250 lb, Swivel Lock Type No Lock Included, Wheel Dia. 5 in, Wheel Width 2 in, Wheel Core Material Steel, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
