  6. Plate Caster, 1250 lb. Load, Silver Wheel

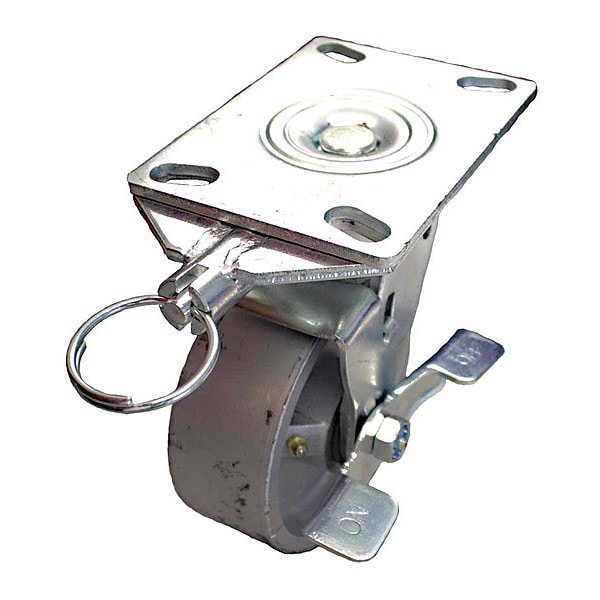

Zoro Select Plate Caster, 1250 lb. Load, Silver Wheel P21S-C080KP-16-WB-DL - main

Plate Caster, 1250 lb. Load, Silver Wheel

  • Mfr # P21S-C080KP-16-WB-DL

  • Zoro # G5617153

product price:  $62.19
/ea

Key Features

Caster Sub-Type
Swivel
Wheel Width
2 in
Core Color
Gray
Application
Dollies, Floor Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
Standards
ANSI ICWM
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
P21S-C080KP-16-WB-DL
Zoro #
G5617153
UPC #
-
Country of Origin
China

Dimensions

Wheel Width
2 in
Wheel Dia.
8 in
Overall Height
9-1/2in
Swivel Radius
5 3/4 in
Mounting Bolt Dia.
1/2 in
Mounting Plate Size
4-1/2 in x 6-1/4 in
Mounting Height
9 1/2 in
Overall Wheel Width
2 in
Outside Slot Spacing - Length
5.25 in
For Axle Dia.
1/2 in
Mounting Plate Thickness
0.236 in
Mounting Plate Length
4 1/2 in
Inside Slot Spacing - Length
4.938 in
Inside Slot Spacing - Width
2.438 in

Details

Caster Sub-Type
Swivel
Core Color
Gray
Item
Swivel Caster With Brake And Directional-Lock
Application
Dollies, Floor Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
Standards
ANSI ICWM
Includes
Complete Caster with Directional Lock
Caster Temp. Range Available
Yes
Caster Brake Type
Directional Lock, Side Brake
Frame Finish
Zinc Plated
Load Rating
1250 lb
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Wheel Color
Silver
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Non-Marking
No
Caster Frame Material
Steel
Caster Plate Hole Pattern
A
Extended Lead
No
Number of Wheels
1
Caster Brake Included
Yes
Features
Push/Pull Force Reduction
Thread Guards
No
Replacement Wheel
Mfr. No. P-C-080x020/050KP
Tread Shape
Standard
Swivel Construction
Kingpin
Wheel/Tread Hardness Rating
Extra Hard
Wheel Bearing Type
Precision Ball
Wheel Core Material
Cast Iron
Number of Mounting Holes
4
Swivel Raceway Type
Double Ball
Swivel Lock Type
4-Position Directional Lock
Load Rating Range
Medium Duty
Wheel/Tread Material
Cast Iron
Includes Thread Guards
No
Wheel/Tread Color
Silver
System of Measurement
Inch
Caster Mounting Type
Plate
Tread Color
Silver
ESD Conductive
No
Tread
Standard
Resistant To
High Chemical Resistance To Many Aggressive Substances
Series
P21 Series
Load Capacity
1250 lb
Load Capacity - Maximum
1,250 lb
Wheel Bearing Material
Steel
For Surface Type
Grease, Metal Scrap, Oil, Rubber, Steel, Wood
Caster Features
Corrosion-Resistant
Brake Location
Rear
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle
Wheel Core Type
Spoke
Wheel Hardness Rating
220 BHN
Operating Temperature Range
Up To 800 Degrees F
Operating Temperature - Maximum
800 Degrees F

Description

Swivel, Plate Caster, Load Rating 1250 lb, Swivel Lock Type 4-Position Directional Lock, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Iron, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Directional Lock, Side Brake, Tread Shape Standard
